3066225

WORLD-BEAM: Plastic Fiber Optic, Range: depends on the fiber, Input: 10-30 V dc, Output: PNP, 150 (6 in) M8 Pigtail QD

Manufacturer's No: QS18VP6FPQ     Manufacturer: Turck Banner
WORLD-BEAM: Plastic Fiber Optic, Range: depends on the fiber, Input: 10-30 V dc, Output: PNP, 150 (6 in) M8 Pigtail QD

Availability On Request

£103.44
  • Type: Photoelectric Sensor for Plastic Fibers
  • Operating Voltage: 10-30 VDC
  • Cable Length: 0.15 m, 4-pin, PVC

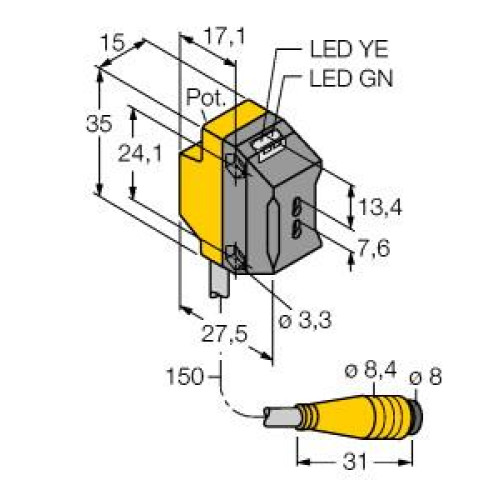

  • Dimensions: 150 mm x 8 mm
  • Protection Class: IP67
  • LED Indicator: All-round visible
  • Sensitivity Adjustment: Via potentiometer
  • Output: PNP switching output, changeover


Product

Manufacturer Material ID -
QS18VP6FPQ
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height amplifier -
34.5 Millimetre
Housing material -
Plastic
Length amplifier -
27.5 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Switching frequency -
800 Hertz
Type of electric connection -
Connector M8
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Width amplifier -
15 Millimetre
Turck Banner

Availability On Request

£103.44
