3075739

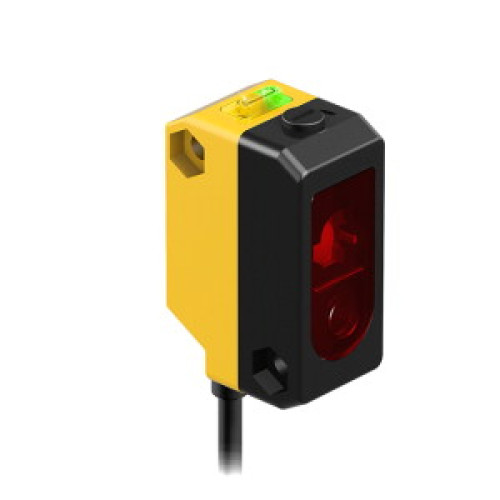

WORLD-BEAM QS18 LASER ADJUSTABLE FIELD, CLASS 2, Rng: 20-Cutoff pt (adj btwn 50-250), Input:, Output: PNP, 2 m Cable

Manufacturer's No: QS18VP6LAF250     Manufacturer: Turck Banner
WORLD-BEAM QS18 LASER ADJUSTABLE FIELD, CLASS 2, Rng: 20-Cutoff pt (adj btwn 50-250), Input:, Output: PNP, 2 m Cable

Availability On Request

£269.49
  • Photoelectric sensor with laser technology
  • Diffuse mode with adjustable background suppression
  • Operating voltage: 10-30 VDC
  • Maximum range: 250 mm
  • Cable length: 2 m, PVC material
  • Protection class: IP67
  • LED indicator visible from all angles
  • Cut-off point adjustable via potentiometer
  • PNP switching output with changeover functionality


Product

Manufacturer Material ID -
QS18VP6LAF250
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

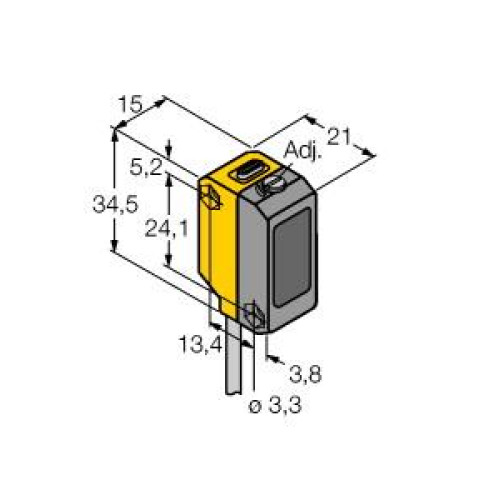

Adjustment range -
1 Millimetre
Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
34.5 Millimetre
Housing material -
Plastic
Laser protection class -
Class 2
Length of sensor -
21.1 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
250 Millimetre
Rated switching distance -
250 Millimetre
Reaction time -
0.7 Millisecond
Setting procedure -
Other
Switching frequency -
700 Hertz
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Wavelength of the sensor -
658 Nanometre
Width sensor -
15 Millimetre
Turck Banner

Availability On Request

£269.49
