WORLD-BEAM QS18 Series: Laser Diffuse, Range: 300, Input: 10-30 V dc, Output: Complementary Solid-State PNP, 4-pin M12 Integral QD

Manufacturer's No: QS18VP6LDQ8     Manufacturer: Turck Banner
WORLD-BEAM QS18 Series: Laser Diffuse, Range: 300, Input: 10-30 V dc, Output: Complementary Solid-State PNP, 4-pin M12 Integral QD

Availability On Request

POA
  • Photoelectric Sensor
  • Diffuse Mode Laser Sensor
  • Operating Voltage: 10-30 VDC
  • Max. Range: 300 mm
  • Male M12 x 1, 4-pin
  • Protection Class: IP67
  • LED all-round visible
  • Sensitivity adjusted via potentiometer
  • PNP switching output, changeover


Product

Manufacturer Material ID -
QS18VP6LDQ8
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
41111926

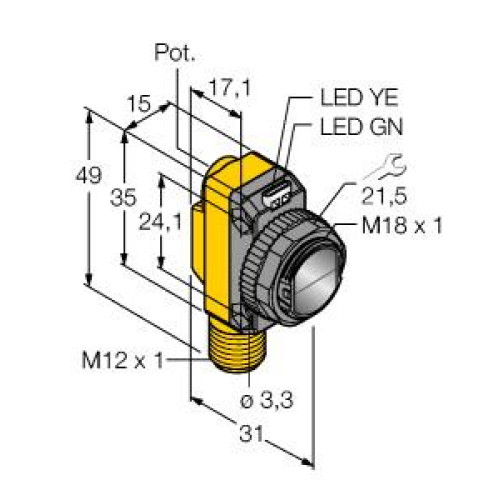

Technical Specification

Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height of sensor -
35 Millimetre
Housing material -
Plastic
Laser protection class -
Class 1
Length of sensor -
31 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
300 Millimetre
Reaction time -
0.7 Millisecond
Switching frequency -
700 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Wavelength of the sensor -
650 Nanometre
Width sensor -
15 Millimetre
