3064591

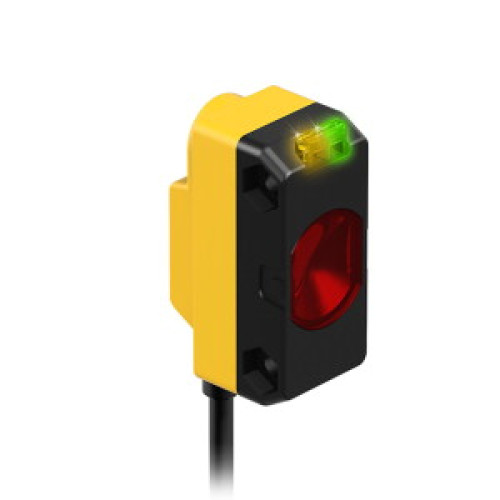

WORLD-BEAM: QS18 Series: Receiver (Flush Front), Range: 3 m, Input: 10-30 V dc, Output: Complementary Solid-State PNP, 150 (6 in)

Manufacturer's No: QS18VP6RBQ5     Manufacturer: Turck Banner
WORLD-BEAM: QS18 Series: Receiver (Flush Front), Range: 3 m, Input: 10-30 V dc, Output: Complementary Solid-State PNP, 150 (6 in) M12 Pigtail QD

Availability On Request

£91.64
  • Photoelectric sensor in opposed mode (emitter/receiver)
  • Operating voltage: 10-30 VDC
  • Max. range: 3000 mm
  • Cable length: 0.15 m, male end
  • Connector: M12 × 1, 4-pin, PVC, 150 mm
  • Protection class: IP67
  • LED all-round visible
  • PNP switching output, changeover


Product

Manufacturer Material ID -
QS18VP6RBQ5
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

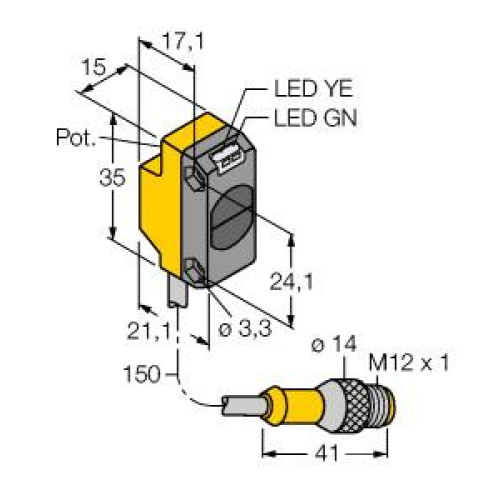

Height of sensor -
35 Millimetre
Housing material -
Plastic
Length of sensor -
27.7 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
3000 Millimetre
Rated switching distance -
3000 Millimetre
Reaction time -
0.75 Millisecond
Switching frequency -
400 Hertz
Type of electric connection -
Connector M12
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Width sensor -
15 Millimetre
Turck Banner

Availability On Request

£91.64
