3010133

WORLD-BEAM QS30 Series Clear Object Sensor, Range: 100 - 2 m, Input: 10-30 V dc, Rating: IP67, Output: Bipolar (NPN & PNP), 2

Manufacturer's No: QS30ELVC     Manufacturer: Turck Banner

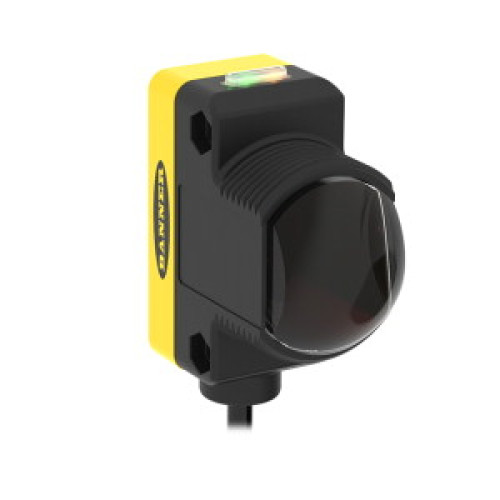

WORLD-BEAM QS30 Series Clear Object Sensor, Range: 100 - 2 m, Input: 10-30 V dc, Rating: IP67, Output: Bipolar (NPN & PNP), 2 m (6.5 ft) Cable

Availability On Request

£249.52
  • Photoelectric Sensor
  • Retroreflective Sensor
  • Operating Voltage: 10-30 VDC
  • Max. Range: 2000 mm
  • Cable Length: 2 m, PVC
  • Protection Class: IP67
  • LED with all-round visibility
  • Teach button
  • 8-segment bargraph
  • Sensitivity adjustment for three object classes

Read more

  • Includes Reflectors: BRT-2X2LVC and BRT-40X19A
  • Switching Output: Bipolar
  • Light or dark operation


Product

Manufacturer Material ID -
QS30ELVC
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Height of sensor -
49 Millimetre
Housing material -
Plastic
Length of sensor -
35 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
2000 Millimetre
Min. reflector distance -
100 Millimetre
Rated switching distance -
2000 Millimetre
Reaction time -
0.5 Millisecond
Switching frequency -
1000 Hertz
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
660 Nanometre
Width sensor -
22 Millimetre
