3071561

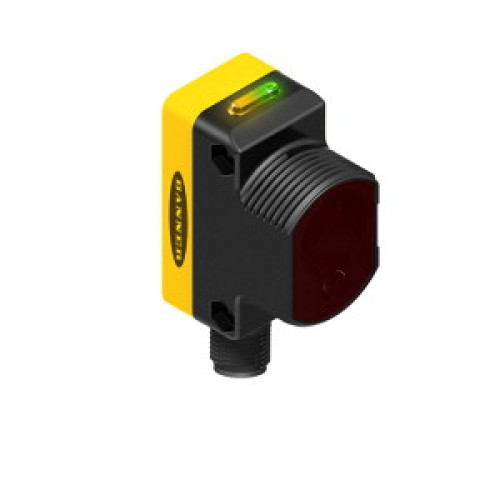

WORLD-BEAM QS30 Series: High-Powered Emitter, Range: 213 m, Input: 10-30 V dc, Output: Not Applicable, 5-pin M12 QD (CAR WASH)

Manufacturer's No: QS30EXQ     Manufacturer: Turck Banner
WORLD-BEAM QS30 Series: High-Powered Emitter, Range: 213 m, Input: 10-30 V dc, Output: Not Applicable, 5-pin M12 QD (CAR WASH)

Availability Back Order

£167.86
  • Type: Photoelectric Sensor, Opposed Mode (Emitter)
  • Operating Voltage: 10-30 VDC
  • Max. Range: 213,000 mm
  • Connector: Male M12 × 1, 5-pin
  • Protection Classes: IP67 / IP69K
  • Features: LED all-round visible, Selectable operating frequency, protection against crosstalk
  • Emitter: LED, switchable


Product

Manufacturer Material ID -
QS30EXQ
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Diameter sensor -
30 Millimetre
Height of sensor -
57 Millimetre
Housing material -
Plastic
Length of sensor -
35 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
213000 Millimetre
Rated switching distance -
213000 Millimetre
Reaction time -
30 Millisecond
Setting procedure -
Other
Type of electric connection -
Connector M12
Type of light -
Infrared light
Wavelength of the sensor -
875 Nanometre
Width sensor -
22 Millimetre
Turck Banner

Availability Back Order

£167.86
