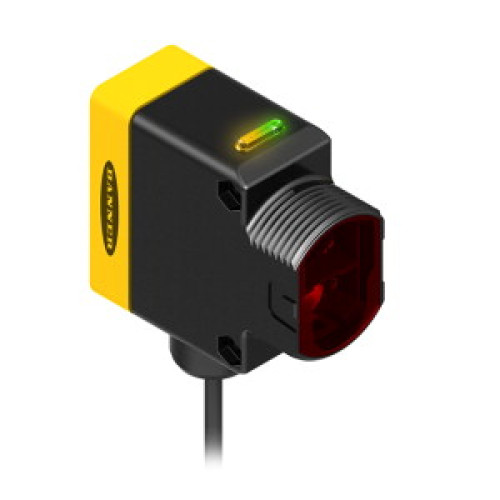

WORLD-BEAM QS30 Series: H2O Receiver, Range: 2 m, Input: 10-30 V dc, Output: DO, Bipolar: 1 NPN, 1 PNP, 2 m (6.5 ft) Cable

Manufacturer's No: QS30RRH2O     Manufacturer: Turck Banner
WORLD-BEAM QS30 Series: H2O Receiver, Range: 2 m, Input: 10-30 V dc, Output: DO, Bipolar: 1 NPN, 1 PNP, 2 m (6.5 ft) Cable

Availability On Request

£249.52
  • Photoelectric sensor for water detection
  • Opposed mode sensor (Emitter/Receiver)
  • Operating voltage: 10-30 VDC
  • Max. range: 2000 mm
  • Cable length: 2 m, PVC material
  • Protection class: IP67
  • LED all-round visible
  • Selectable operating frequency
  • Protection against crosstalk
  • Switching output: bipolar, dark operation


Product

Manufacturer Material ID -
QS30RRH2O
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

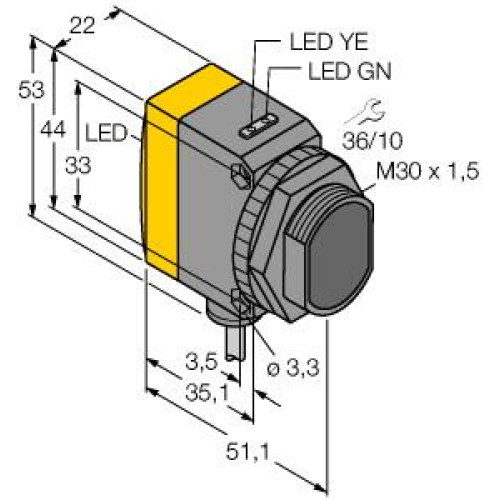

Diameter sensor -
30 Millimetre
Height of sensor -
53 Millimetre
Housing material -
Plastic
Length of sensor -
54.3 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
2000 Millimetre
Rated switching distance -
2000 Millimetre
Reaction time -
1 Millisecond
Sensing mode -
Dark switching
Type of electric connection -
Cable
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Width sensor -
22 Millimetre
Turck Banner

Availability On Request

£249.52
