3073201

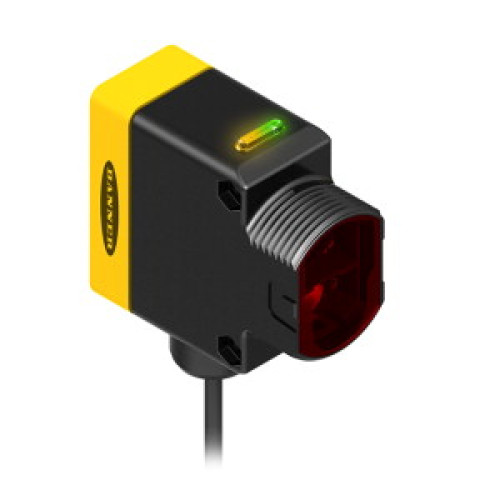

Photoelectric Sensor, Diffuse Mode Sensor with Fixed-Field Background Suppressio

Manufacturer's No: QS30VR3FF600 W/30     Manufacturer: Turck Banner
Photoelectric Sensor, Diffuse Mode Sensor with Fixed-Field Background Suppressio

Availability On Request

£182.24
  • Type: Photoelectric Sensor, Diffuse Mode with Fixed-Field Background Suppression
  • Operating Voltage: 24-250 VAC / 12-250 VDC
  • Maximum Range: 600 mm
  • Cable Length: 9 m, PVC material
  • Protection Class: IP67
  • LED Indicator: All-round visible
  • Output: Relay, changeover
  • Dual Operating Voltage: 12-250 VDC or 24-250 VAC


Product

Manufacturer Material ID -
QS30VR3FF600 W/30
Net Weight -
0.67kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Adjustment range -
0 Millimetre
Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Height of sensor -
44 Millimetre
Housing material -
Plastic
Length of sensor -
51.5 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
600 Millimetre
Rated switching distance -
600 Millimetre
Reaction time -
15 Millisecond
Switching frequency -
250 Hertz
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
Relay contact
Wavelength of the sensor -
680 Nanometre
Width sensor -
22 Millimetre
Turck Banner

Availability On Request

£182.24
