3073069

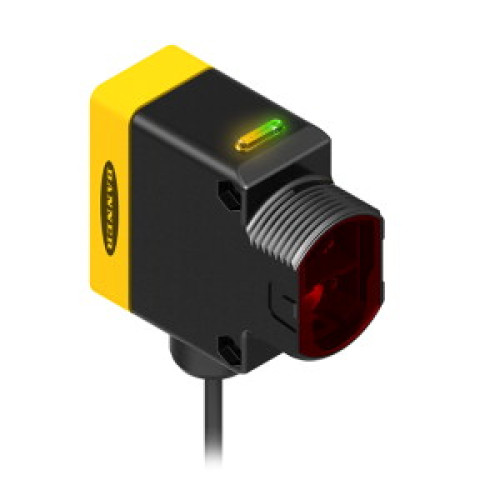

WORLD-BEAM QS30 Series: Universal Voltage, Range: 60 m, Input: 12-250 V dc or 24-250 V ac, Output: SPDT e/m Relay, 2 m (6.5 ft) Ca

Manufacturer's No: QS30VR3R     Manufacturer: Turck Banner
WORLD-BEAM QS30 Series: Universal Voltage, Range: 60 m, Input: 12-250 V dc or 24-250 V ac, Output: SPDT e/m Relay, 2 m (6.5 ft) Cable

Availability On Request

£136.10
  • Type: Photoelectric Sensor, Opposed Mode (Emitter/Receiver)
  • Operating Voltage: 24-250 VAC / 12-250 VDC
  • Max. Range: 60000 mm
  • Cable Length: 2 m, PVC
  • Protection Class: IP67
  • LED Indicator: All-round visible
  • Output: Relay, Changeover


Product

Manufacturer Material ID -
QS30VR3R
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
US
UNSPSC -
39122216

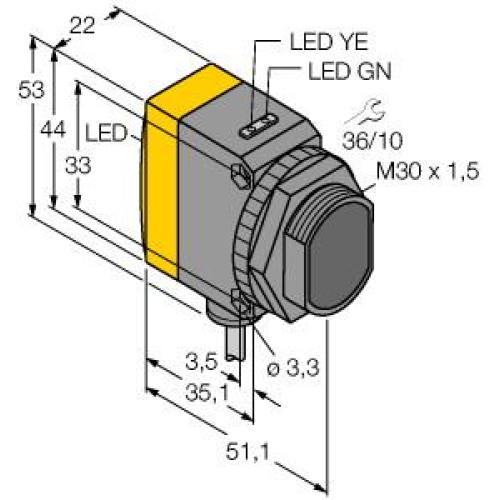

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Height of sensor -
44 Millimetre
Housing material -
Plastic
Length of sensor -
51.5 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
60000 Millimetre
Rated switching distance -
60000 Millimetre
Reaction time -
15 Millisecond
Switching frequency -
33 Hertz
Type of electric connection -
Cable
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
Relay contact
Width sensor -
22 Millimetre
Turck Banner

Availability On Request

£136.10
