54271 {B}

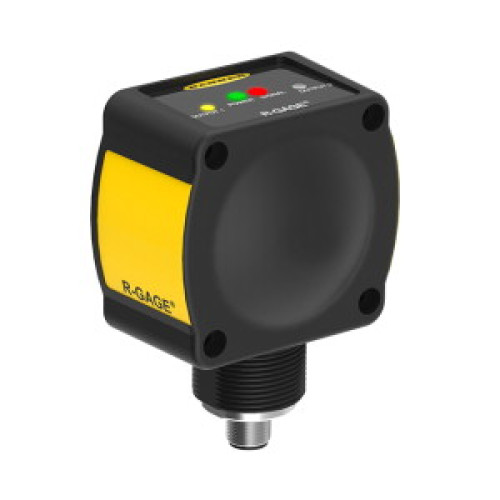

R-Gage Series Radar Sensor, Adjustable Field, Outputs: Bipolar: 1 NPN, 1 PNP, Supply Voltage: 12-30 V dc, Range: 2.0-3.5 m, 5-pin

Manufacturer's No: QT50R-EU-AFSQ     Manufacturer: Turck Banner
R-Gage Series Radar Sensor, Adjustable Field, Outputs: Bipolar: 1 NPN, 1 PNP, Supply Voltage: 12-30 V dc, Range: 2.0-3.5 m, 5-pin M12 Integral QD

Availability Available to order

£923.28
  • Type: Radar Sensor
  • Technology: FMCW radar (frequency-modulated continuous wave radar)
  • Max. Range: 3.75 meters
  • Detection Range: Up to 3500 mm
  • Connector: M12 × 1 male, 5-pin
  • Operating Voltage: 12-30 VDC
  • Switching Output: PNP/NPN
  • Protection Class: IP67
  • Configuration: DIP switch
  • Approved for: Europe (incl. UK), Australia, New Zealand, Japan, China


Product

Manufacturer Material ID -
QT50R-EU-AFSQ
Net Weight -
0.33kg

Additional Product Information

Commodity Code -
85261000900
Country of Origin -
US
UNSPSC -
39122216
Turck Banner

Availability Available to order

£923.28
