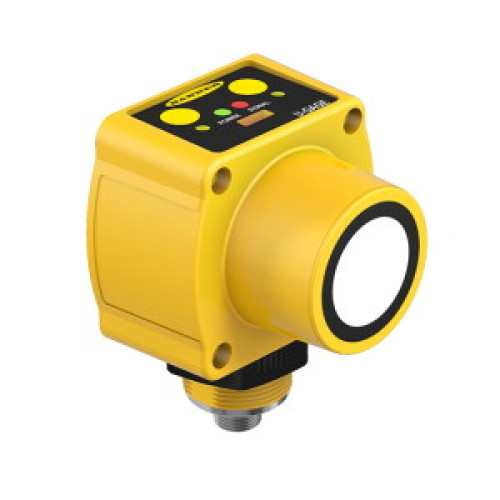

QT50U Analog Series: Proximity Mode, Range: 200 - 8 m, Input: 10-30 V dc, Outputs: Analog: 0-10 V or 4-20 mA, 5-pin Mini-Style Int

Manufacturer's No: QT50ULBQ     Manufacturer: Turck Banner
QT50U Analog Series: Proximity Mode, Range: 200 - 8 m, Input: 10-30 V dc, Outputs: Analog: 0-10 V or 4-20 mA, 5-pin Mini-Style Integral QD

Availability On Request

£836.59
  • Ultrasonic sensor in diffuse mode
  • Analog output
  • Operating voltage: 10-30 VDC
  • Max. range: 8000 mm
  • LED indicator for signal intensity
  • Male connector with 5-pin, 7/8"
  • Temperature compensation selectable via DIP switch
  • Blind zone: 20 cm
  • Detection range: 800 cm


Product

Manufacturer Material ID -
QT50ULBQ
Net Weight -
0.49kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Height of sensor -
100.2 Millimetre
Housing material -
Plastic
Length of sensor -
67.4 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
200 Millimetre
Supply voltage -
10 Volt
Type of analogy output -
4 mA ... 20 mA
Type of electric connection -
Plug-in connection
Type of switching output -
Other
Width sensor -
74 Millimetre
