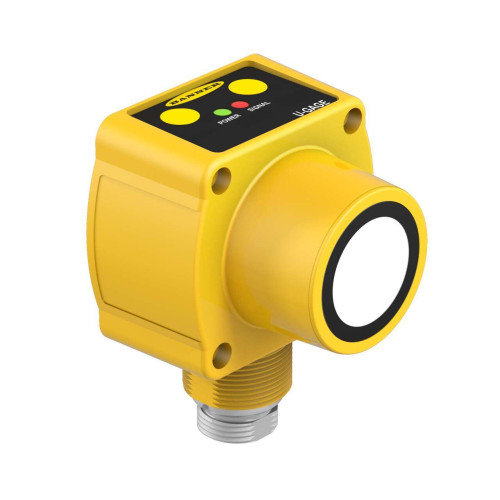

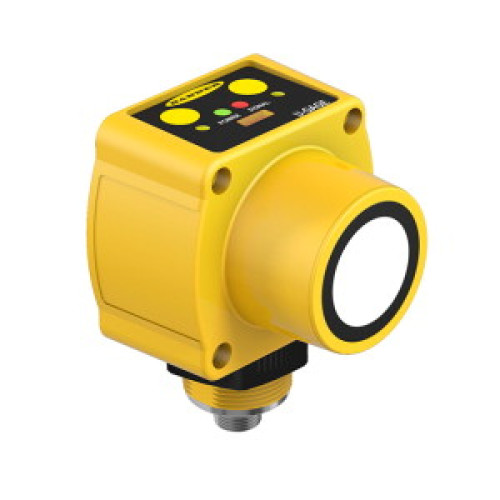

QT50U Universal Voltage Series: Proximity Mode, Range: 200/8 m, Input: 85-264 V ac 50/60 Hz/48 to 250 V dc, Output: SPDT electrome

Manufacturer's No: QT50UVR3WQ     Manufacturer: Turck Banner
QT50U Universal Voltage Series: Proximity Mode, Range: 200/8 m, Input: 85-264 V ac 50/60 Hz/48 to 250 V dc, Output: SPDT electromechanical relay, 5-pin Mini-Style Integral QD

Availability Back Order

£751.18
  • Model: QT50U Universal Voltage Series
  • Proximity Mode
  • Detection Range: 200/8 meters
  • Input Voltage: 85-264 V AC (50/60 Hz) or 48-250 V DC
  • Output: SPDT Electromechanical Relay
  • 5-pin Mini-Style Integral Quick Disconnect


Product

Manufacturer Material ID -
QT50UVR3WQ
Net Weight -

Additional Product Information

UNSPSC -
39122216

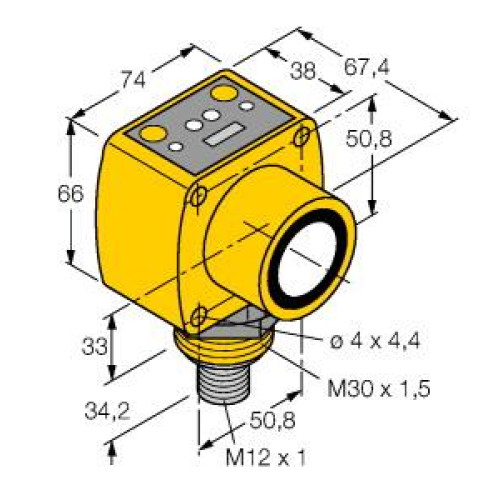

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Height of sensor -
100.2 Millimetre
Housing material -
Plastic
Length of sensor -
67.4 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
200 Millimetre
Supply voltage -
85 Volt
Switching frequency -
5 Hertz
Type of electric connection -
Plug-in connection
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Width sensor -
74 Millimetre
Turck Banner

Availability Back Order

£751.18
