3058011

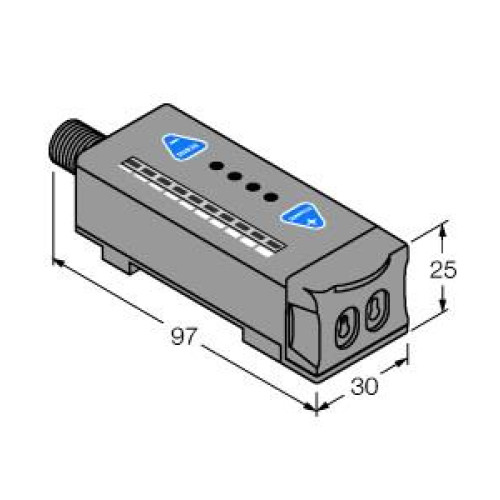

R55 Color Mark: Glass Fiber w/ Green LED, Range: Depends on Fiber, Input: 10-30 V dc, Outputs: Bipolar NPN/PNP, 5-pin M12 Integral

Manufacturer's No: R55FVGQ     Manufacturer: Turck Banner
R55 Color Mark: Glass Fiber w/ Green LED, Range: Depends on Fiber, Input: 10-30 V dc, Outputs: Bipolar NPN/PNP, 5-pin M12 Integral QD

Availability On Request

£250.43
  • Type: Photoelectric Sensor for Glass Fibers
  • Operating Voltage: 10 to 30 VDC
  • Connector: Male M12 × 1, 5-pin
  • Protection Class: IP67
  • Features: Teach button, 10-segment bargraph
  • Switch-off Delay Options: No delay, 20 ms, 40 ms
  • Emitter: Green LED
  • Switching Output: Bipolar
  • Operation Mode: Light or dark operation


Product

Manufacturer Material ID -
R55FVGQ
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height amplifier -
25 Millimetre
Housing material -
Plastic
Length amplifier -
97 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
No load current -
70 Milliampere
Type of electric connection -
Connector M12
Type of light -
Green light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Width amplifier -
30 Millimetre
Turck Banner

Availability On Request

£250.43
