3010219

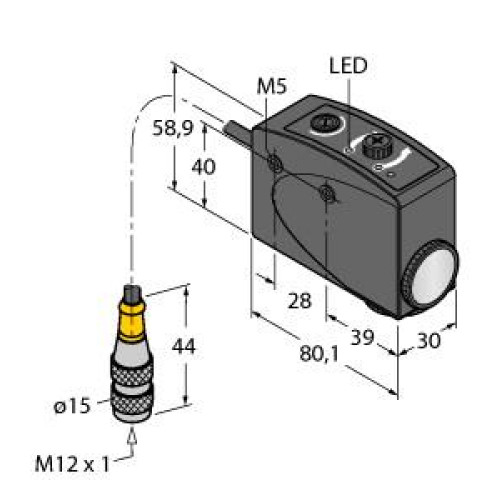

R58 A Register Mark Sensor, Input, 10-30 V dc, Output: Bipolar, 1 NPN, 1 PNP, Green Parallel Sensing Beam, 150 (6 in) 5-pin M12 Pi

Manufacturer's No: R58ACG1Q     Manufacturer: Turck Banner
R58 A Register Mark Sensor, Input, 10-30 V dc, Output: Bipolar, 1 NPN, 1 PNP, Green Parallel Sensing Beam, 150 (6 in) 5-pin M12 Pigtail QD

Availability On Request

£332.29
  • Photoelectric Sensor
  • Color Mark Sensor
  • Switching Output
  • Operating Voltage: 10-30 VDC
  • Max. Range: 10 mm
  • Focal Distance: 10 mm
  • Cable Length: 0.15 m, 4-pin, male end
  • PVC Cable
  • Protection Class: IP67
  • Threshold Adjustment: 15-turn potentiometer

Read more

  • Light/Dark Operate Adjustment: rotary switch
  • Emits green light for detection
  • Parallel scan field relative to housing axis
  • Optics rotatable by 90°
  • PNP/NPN Switching Output
  • Switching Behavior Adjustable (NO/NC)


Product

Manufacturer Material ID -
R58ACG1Q
Net Weight -
0.43kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
58.9 Millimetre
Housing material -
Other
Length of sensor -
80.1 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
No load current -
75 Milliampere
Type of electric connection -
Connector M12
Type of light -
Green light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Width sensor -
30 Millimetre
Turck Banner

Availability On Request

£332.29
