R58BRegister Mark Sensor, Input, 10-30 V dc, Output: 1 PNP (PIN 4), Parallel Sensing Beam, 2 m Cable

Manufacturer's No: R58BPCRGB1     Manufacturer: Turck Banner
R58BRegister Mark Sensor, Input, 10-30 V dc, Output: 1 PNP (PIN 4), Parallel Sensing Beam, 2 m Cable

Availability On Request

£359.78
  • Photoelectric Sensor with Color Mark Detection
  • Operating Voltage: 10-30 VDC
  • Max. Detection Range: 10 mm
  • Focal Distance: 10 mm
  • Cable Length: 2 m, 5-wire PVC
  • Protection Class: IP67
  • Detects small contrast differences
  • Adjustable on/off delay: 30 ms
  • Automatic selection of red, green, and blue light
  • Optics rotatable by 90°

Read more

  • PNP switching output, adjustable switching behavior (NO/NC)
  • Programmed via 2 teach buttons
  • Teach input for easy setup


Product

Manufacturer Material ID -
R58BPCRGB1
Net Weight -
0.52kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

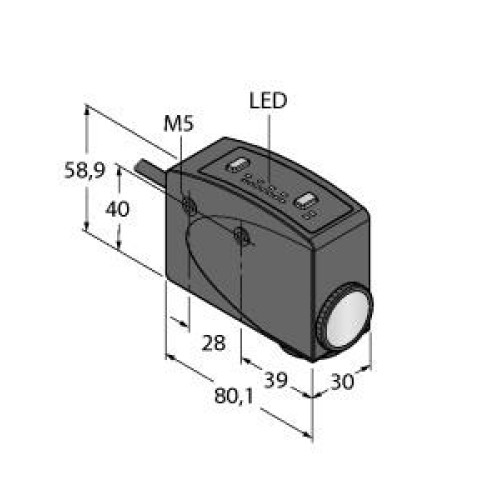

Height of sensor -
58.9 Millimetre
Housing material -
Other
Length of sensor -
80.1 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
No load current -
75 Milliampere
Type of electric connection -
Cable
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Width sensor -
30 Millimetre
