2CSM142120R1201

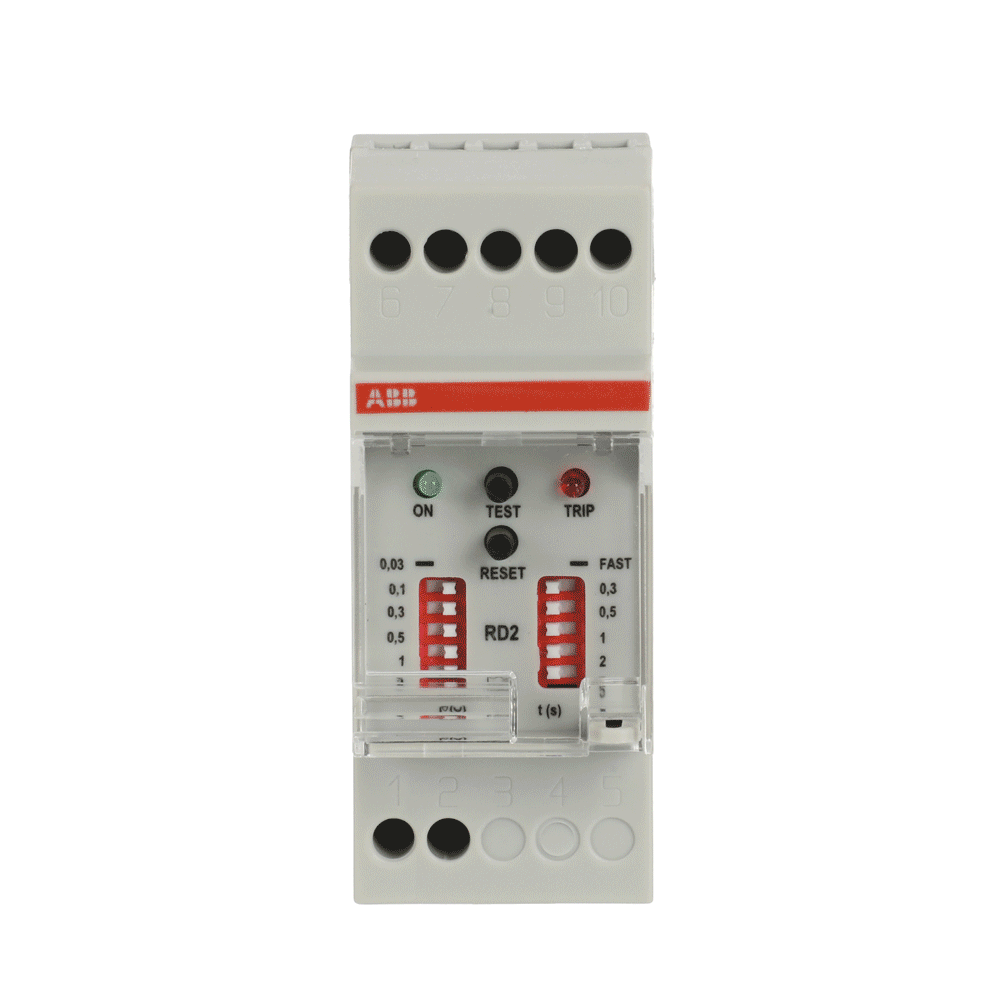

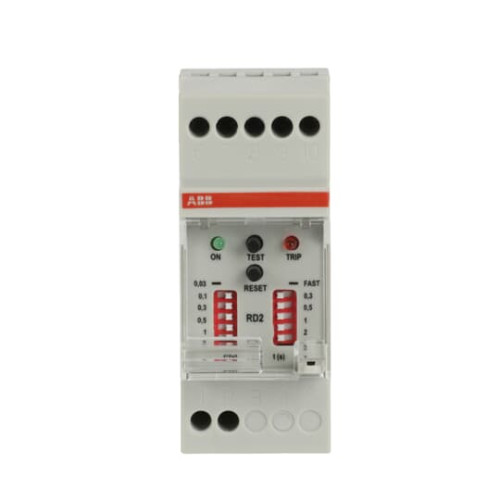

RD2 Residual Current Monitor

Manufacturer's No: RD2     Manufacturer: ABB

Availability Back Order

£368.99
  • RD2 Residual Current Monitor
  • Detects leakage currents
  • External transformer for RCMs
  • Minidip for setting sensitivity and intervention time
  • Operating voltage: 230-400V AC


Product

Manufacturer Material ID -
RD2
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85364190
Country of Origin -
HU
Minimum Order Quantity -
1
UNSPSC -
39122331

Technical Specification

Rated control supply voltage Us at DC -
- Volt
Response value amperage 2 -
- Milliampere
Rated frequency -
50 Hertz
Type of electric connection -
Screw connection
Rated control supply voltage Us at AC 50HZ -
400 Volt
Rated control supply voltage Us at AC 60HZ -
400 Volt
Voltage type for actuating -
AC
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of contacts as change-over contact -
1
Rated voltage -
400 Volt
Depth -
65 Millimetre
Function -
For AC-current system
Height -
85 Millimetre
Max. permitted delay-on energization time -
5 Second
Min. adjustable delay-on energization time -
0.3 Second
Response value amperage 1 -
2000 Milliampere
Width -
35 Millimetre
