2CSJ201001R0002

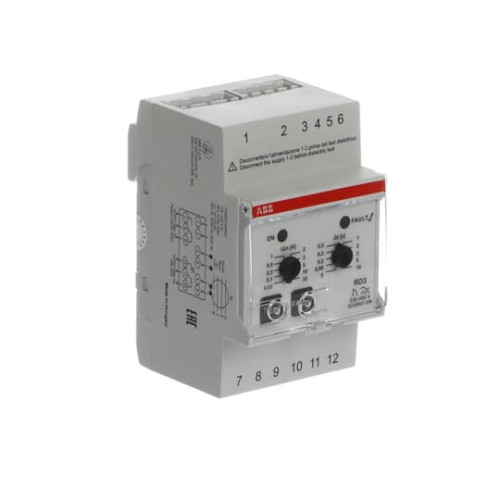

RD3 Residual Current Monitor

Manufacturer's No: RD3     Manufacturer: ABB
RD3 Residual Current Monitor

Availability Back Order

£431.29
  • RD3 series electronic residual current relays
  • Provides residual current protection and monitoring
  • Compatible with MCBs of S200 series and Tmax range up to T5
  • Designed for industrial installations


Product

Manufacturer Material ID -
RD3
Net Weight -
0.31kg

Additional Product Information

Commodity Code -
85364190
Country of Origin -
HU
Minimum Order Quantity -
1
UNSPSC -
39122331

Technical Specification

Rated control supply voltage Us at DC -
- Volt
Response value amperage 2 -
- Milliampere
Rated frequency -
50 Hertz
Type of electric connection -
Screw connection
Rated control supply voltage Us at AC 50HZ -
400 Volt
Rated control supply voltage Us at AC 60HZ -
400 Volt
Voltage type for actuating -
AC
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of contacts as change-over contact -
1
Rated voltage -
400 Volt
Depth -
65 Millimetre
Function -
For mixed system
Height -
85 Millimetre
Indication of difference current -
Max. permitted delay-on energization time -
10 Second
Min. adjustable delay-on energization time -
0 Second
Response value amperage 1 -
500 Milliampere
Width -
52.8 Millimetre
ABB

Availability Back Order

£431.29
