2CSJ203001R0001

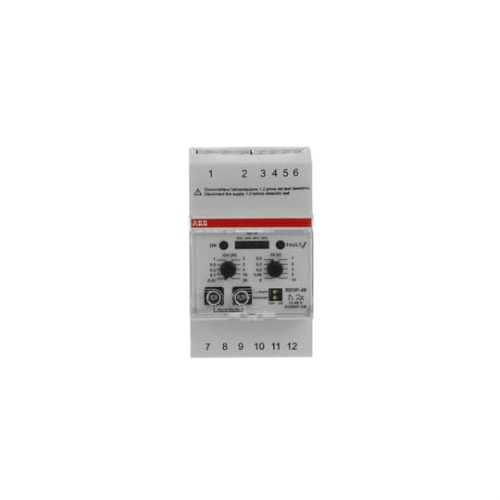

RD3P-48 Residual Current Monitor

Manufacturer's No: RD3P-48     Manufacturer: ABB
RD3P-48 Residual Current Monitor

Availability Back Order

£543.09
  • Model: RD3P-48 Residual Current Monitor
  • Provides residual current protection and monitoring functions
  • Compatible with MCBs of S200 series and Tmax range moulded case devices up to T5
  • Suitable for industrial installations


Product

Manufacturer Material ID -
RD3P-48
Net Weight -
0.22kg

Additional Product Information

Commodity Code -
85364190
Country of Origin -
HU
Minimum Order Quantity -
1
UNSPSC -
39122330

Technical Specification

Response value amperage 2 -
- Milliampere
Rated frequency -
50 Hertz
Type of electric connection -
Screw connection
Rated control supply voltage Us at AC 50HZ -
48 Volt
Rated control supply voltage Us at AC 60HZ -
48 Volt
Rated control supply voltage Us at DC -
48 Volt
Voltage type for actuating -
AC/DC
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of contacts as change-over contact -
1
Rated voltage -
48 Volt
Depth -
65 Millimetre
Function -
For mixed system
Height -
85 Millimetre
Indication of difference current -
Max. permitted delay-on energization time -
10 Second
Min. adjustable delay-on energization time -
0 Second
Response value amperage 1 -
500 Milliampere
Width -
52.8 Millimetre
ABB

Availability Back Order

£543.09
