50125991

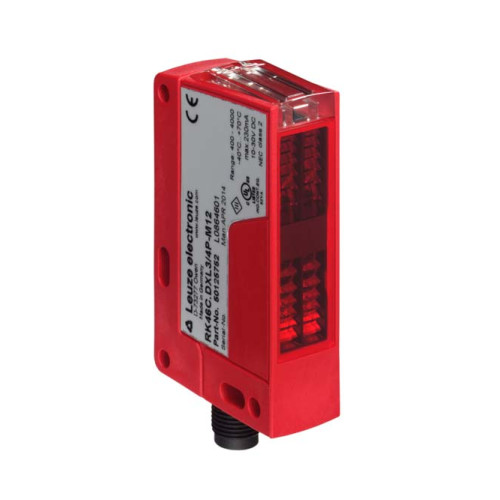

The Unpolarized retro-reflective photoelectric sensor from . Application: Detection of objects with cutouts and openings, Detectio

Manufacturer's No: RK46C.DXL3/PX-M12     Manufacturer: Leuze
The Unpolarized retro-reflective photoelectric sensor from . Application: Detection of objects with cutouts and openings, Detection of stretch-wrapped objects, Detection of small parts; Operating ra

Availability Back Order

£176.00
  • Application: Detection of stretch-wrapped objects, irregular objects on conveyor belt, objects with openings
  • Special version: Extra long light spot (XL), AS-Interface connection via coupling module
  • Operating range limit: 0.4 - 5.2 m
  • Detection range: Light-band 40-60 mm
  • Light source: Red LED
  • Minimum object size: 8 mm
  • Supply voltage: 10 - 30 V DC
  • Digital switching outputs: 1 piece
  • Switching output 1: Transistor, PNP, Dark switching
  • Switching frequency: 250 Hz

Read more

  • Connection: M12 Plastic 4-pin connector
  • Design: Cubic housing
  • Dimensions: 20.5 mm x 76.3 mm x 44 mm
  • Housing material: Plastic
  • Operational controls: Teach button
  • Ambient temperature, operation: -40 - 60 °C
  • Degree of protection: IP 67, IP 69K

Accessories



Product

Manufacturer Material ID -
RK46C.DXL3/PX-M12
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
39121528

Technical Specification

Number of contact energized outputs with signalling function -
-
Number of protected contact energized outputs -
-
Type of interface for safety communication -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Light dot -
- Square millimetre
Max. output current at protected output -
- Milliampere
Transmission range of the safety field -
- Metre
Switching voltage of OSSD at state "high" -
- Volt
Type of safety acc. IEC 61496-1 -
UN
Diameter sensor -
- Millimetre
Degree of protection (NEMA) -
UN
Max. output current -
100 Milliampere
Material housing -
Plastic
Time of reaction -
2 Millisecond
Degree of protection (IP) -
IP67
Thumbnail of product picture -
Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
76.3 Millimetre
Housing material -
Plastic
Laser protection class -
None
Length of sensor -
44 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
4000 Millimetre
Maximum output current -
100 Milliampere
Min. reflector distance -
400 Millimetre
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
1
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
10 Volt
Rated switching distance -
4000 Millimetre
Reaction time -
2 Millisecond
Sensing mode -
Dark switching
Setting procedure -
Teach-In
Switching frequency -
250 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Other
Type of switching output -
PNP
Voltage type -
DC
Wavelength of the sensor -
620 Nanometre
Width sensor -
20.5 Millimetre
