50136079

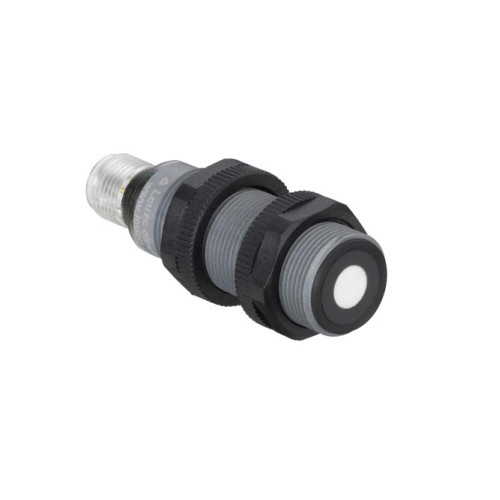

The Ultrasonic retro-reflective photoelectric sensor from . Special design: Teach input; Operating range: 0 ... 0.3 m; Opening an

Manufacturer's No: RKU318-300/2T-M12     Manufacturer: Leuze
The Ultrasonic retro-reflective photoelectric sensor from .  Special design: Teach input; Operating range: 0 ... 0.3 m; Opening angle: 7 °; Direction of beam: Front; Supply voltage: 10 ... 30 V, DC;

Availability On Request

£221.00
The Ultrasonic retro-reflective photoelectric sensor from . Special design: Teach input; Operating range: 0 ... 0.3 m; Opening angle: 7 °; Direction of beam: Front; Supply voltage: 10 ... 30 V, DC; Digital switching outputs: 1 Piece(s); Switching output 1: Transistor, NPN, NO (normally open); Switching frequency: 8 Hz; Connection: Connector, M12, 4 -pin; Design: Cylindrical, M18; Dimensions: 18 mm x 60.3 mm; Housing material: Plastic


Product

Manufacturer Material ID -
RKU318-300/2T-M12
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
IT
UNSPSC -
39121528

Technical Specification

Type of analogy output -
UN
Setting procedure -
UN
Standard for interfaces -
UN
Relative linearity deflection -
- Percentage
Material of cable sheath -
UN
AWG-number -
-
Width sensor -
- Millimetre
Height of sensor -
- Millimetre
Max. output current -
100 Milliampere
Material housing -
Plastic
Voltage type -
DC
Maximum output current -
100 Milliampere
Housing material -
Plastic
Ambient temperature -
-20 Degrees celsius
Switching frequency -
8 Hertz
Type of electric connection -
Connector M12
Type of switching output -
NPN
Type of switch function -
Normally open contact (NO)
Blind zone -
0 Millimetre
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Construction type housing -
Cylinder plain
No load current -
35 Milliampere
Relative repeat accuracy -
0.5 Percentage
Supply voltage -
10 Volt
Material active area of sensor -
Ceramics
Diameter sensor -
18 Millimetre
Length of sensor -
60.3 Millimetre
Adjustable distance -
0 Millimetre
Measuring range length -
0 Millimetre
Leuze

Availability On Request

£221.00
