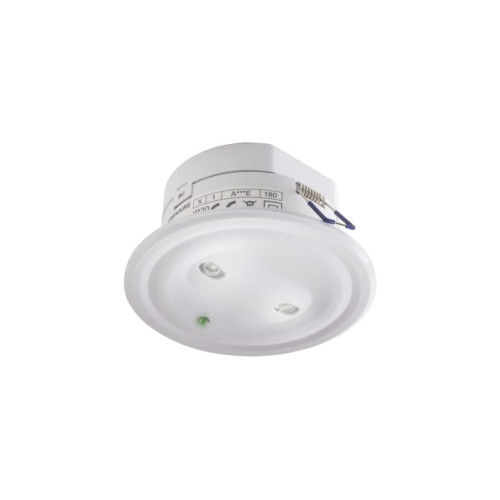

7TCA091720R0091

PRIMEVO ESC ROUTE RECESSED 100

Manufacturer's No: RS100E     Manufacturer: ABB
PRIMEVO ESC ROUTE RECESSED 100

Availability On Request

£64.47
  • Model: PRIMEVO ESC ROUTE RECESSED 100
  • Type: PrimEvo Recessed Downlite
  • Voltage: 220-240 Vac, 50Hz
  • LED Power: 2 LEDs x 3W
  • Operating Temperature: 0-25°C


Product

Manufacturer Material ID -
RS100E
Net Weight -
0.42kg

Additional Product Information

Commodity Code -
9405490000
Country of Origin -
CN
UNSPSC -
39101600

Technical Specification

Labelling type -
Sticker
Type of indicator -
Single-sided
Length -
130 Millimetre
Wiring system -
Continuous circuit/emergency circuit
Lamp included -
Luminous flux in standby mode -
140 Lumen
Battery chemistry -
NiCd
Colour temperature -
6000 Kelvin
Connection type -
Other
Control gear -
LED driver constant current
Cover material -
Plastic matt/satinised
Degree of protection (IP rating) -
IP20
Function -
Escape route lighting
Height/depth -
62 Millimetre
Housing colour -
White
Housing material -
Plastic
Impact resistance (IK rating) -
IK10
Light distribution -
Other
Light source included -
Light source type -
LED non-replaceable
Maximum system power -
4.8 Watt
Monitoring equipment -
Test button
Mounting method -
Built-in
Nominal operation time -
3 Hour
Nominal voltage -
220 Volt
Number of lamps -
2
Number of lighting heads -
1
Number of poles -
2
Outer diameter -
130 Millimetre
Power factor -
0.6
Power supply system -
Peripheral (individual battery)
Protection class -
II
Rated ambient temperature acc. IEC62722-2-1 -
0 Degrees celsius
Rated luminous flux acc. IEC 62722-2-1 -
120 Lumen
Recess width -
57 Millimetre
Type of cabling -
Suitable for through wiring
Voltage type -
AC
Width -
130 Millimetre
ABB

Availability On Request

£64.47
