1610012

Ultrasonic Sensor, Diffuse Mode Sensor

Manufacturer's No: RU40U-M18E-2UP8X2-H1151     Manufacturer: Turck Banner
Ultrasonic Sensor, Diffuse Mode Sensor

Availability On Request

£241.90
  • Type: Ultrasonic Sensor
  • Mode: Diffuse Mode
  • Operating Voltage: 15-30 VDC
  • Max. Range: 400 mm
  • Smooth sonic transducer face

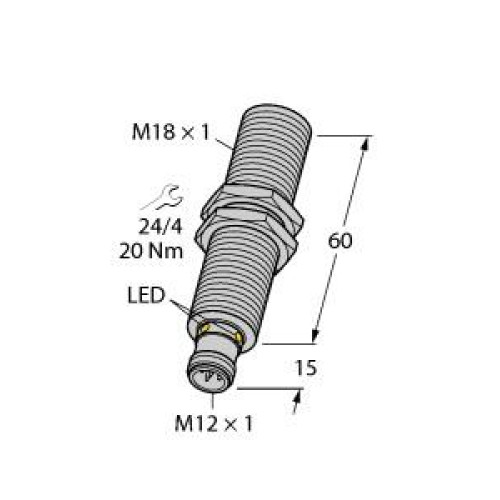

  • Housing: Cylindrical M18, potted
  • Connection: M12 x 1 male
  • Teach range adjustable via adapter
  • Temperature compensation
  • Blind Zone: 2.5 cm

Read more

  • Range: 40 cm
  • Resolution: 0.5 mm
  • Aperture Angle of Sonic Cone: ±15°
  • Switching Outputs: 2 x PNP, NO/NC programmable


Product

Manufacturer Material ID -
RU40U-M18E-2UP8X2-H1151
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
18 Millimetre
Housing material -
Other
Length of sensor -
75 Millimetre
Material active area of sensor -
Plastic
Measuring range length -
25 Millimetre
No load current -
50 Milliampere
Relative linearity deflection -
0.5 Percentage
Relative repeat accuracy -
0.15 Percentage
Supply voltage -
15 Volt
Switching frequency -
10.4 Hertz
Type of electric connection -
Plug-in connection
Type of switch function -
Programmable/configurable
Type of switching output -
PNP
Turck Banner

Availability On Request

£241.90
