1610070

Ultrasonic Sensor, Diffuse Mode Sensor

Manufacturer's No: RU70U-M18M-UP8X2-H1151     Manufacturer: Turck Banner
Ultrasonic Sensor, Diffuse Mode Sensor

Availability On Request

POA
  • Type: Ultrasonic Sensor
  • Mode: Diffuse Mode
  • Operating Voltage: 15-30 VDC
  • Max. Range: 700 mm
  • Smooth sonic transducer face

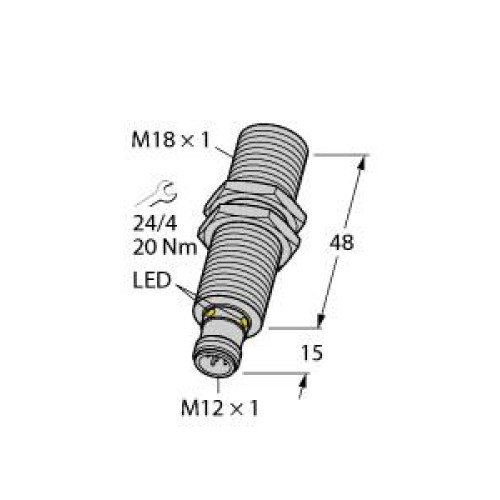

  • Housing: Cylindrical M18 with potting
  • Connection: M12 x 1 male
  • Temperature compensation
  • Blind Zone: 10 cm
  • Range: 70 cm

Read more

  • Resolution: 1 mm
  • Aperture Angle of Sonic Cone: ±16°
  • Output: 1 x switching output, PNP
  • Teachable settings
  • Programmable as NO/NC


Product

Manufacturer Material ID -
RU70U-M18M-UP8X2-H1151
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
41111926

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
18 Millimetre
Housing material -
Other
Length of sensor -
63 Millimetre
Material active area of sensor -
Plastic
Measuring range length -
100 Millimetre
No load current -
50 Milliampere
Relative linearity deflection -
0.5 Percentage
Relative repeat accuracy -
0.15 Percentage
Setting procedure -
Other
Supply voltage -
15 Volt
Switching frequency -
4.8 Hertz
Type of electric connection -
Plug-in connection
Type of switch function -
Programmable/configurable
Type of switching output -
PNP
Turck Banner

Availability On Request

POA
