1SAM201907R1101

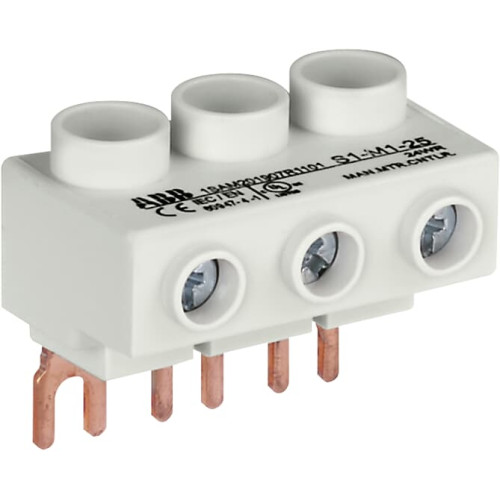

S1-M1-25 3-phase power infeed block Flat, for MS116 / MS132, 25mm2

Manufacturer's No: S1-M1-25-3     Manufacturer: ABB
S1-M1-25 3-phase power infeed block Flat, for MS116 / MS132, 25mm2

Availability On Request

£14.36
  • Product: S1-M1-25 3-Phase Power Infeed Block
  • Compatible with MS116 and MS132 manual motor starters
  • Cable cross section up to 25mm²
  • Flat mounting form
  • Rated current: 65A


Product

Manufacturer Material ID -
S1-M1-25-3
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121410

Technical Specification

Number of connections < 6 mm≤ -
1
Number of connections 10 mm≤ -
1
Number of connections 25 mm≤ -
1
Number of connections 16 mm≤ -
1
Number of connections > 25 mm≤ -
0
Number of connections < 6 mm² -
1
Number of connections 10 mm² -
1
Number of connections 25 mm² -
1
Number of connections 16 mm² -
1
Number of connections > 25 mm² -
0
Number of connections total -
1
Conductor cross section, input -
2.5 Square millimetre
Conductor cross section, input AWG -
14
Conductor cross section, output -
2.5 Square millimetre
Connection type -
Screwing
Contact safe -
Depth -
25.5 Millimetre
Height -
38 Millimetre
Mounting method -
Screw
Nominal current -
65 Ampere
Number of inputs -
3
Number of outputs -
3
Number of poles -
3
Suitable for extra fine-strand conductors -
Suitable for extra fine-strand conductors without cable end sleeve -
Suitable for fine strand conductors -
Suitable for fine strand conductors without cable end sleeve -
Suitable for solid cores -
Useful for stranded conductors -
Width -
44 Millimetre
