3042192

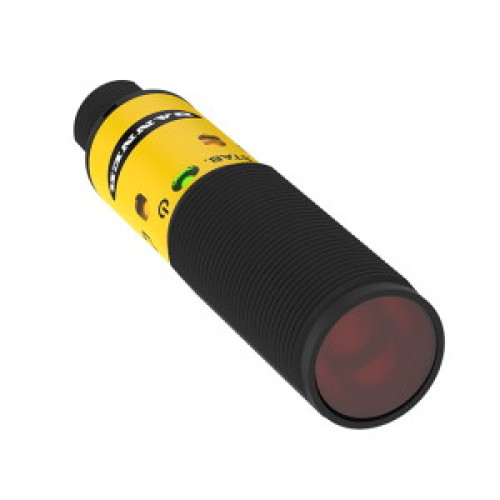

S18-2 Series: Emitter, Long Range, Range: 25 m, Input: 10-30 V dc, Outputs: none, 4-pin M12 Integral QD

Manufacturer's No: S18-2NAEL-Q8     Manufacturer: Turck Banner
S18-2 Series: Emitter, Long Range, Range: 25 m, Input: 10-30 V dc, Outputs: none, 4-pin M12 Integral QD

Availability On Request

£37.20
  • Photoelectric sensor in Opposed Mode (Emitter)
  • Operating voltage: 10-30 VDC
  • Max. range: 25000 mm
  • M12 x 1 male connector, 4-pin
  • Protection class: IP67
  • Ambient temperature: -40 to +70°C
  • Visible red LED light
  • Operating voltage: 10-30 VDC


Product

Manufacturer Material ID -
S18-2NAEL-Q8
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67

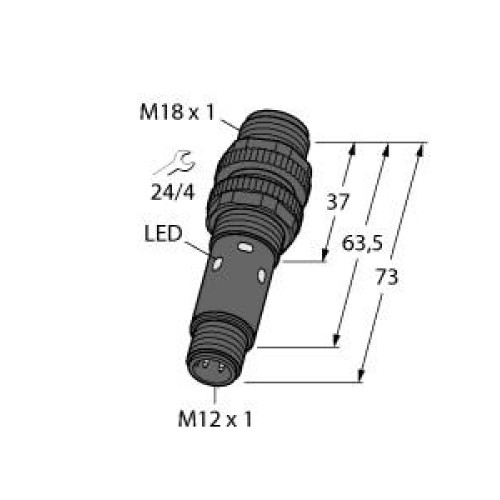

Diameter sensor -
18 Millimetre
Housing material -
Plastic
Length of sensor -
73 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Max. switching distance -
25000 Millimetre
Rated switching distance -
25000 Millimetre
Reaction time -
1.5 Millisecond
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Wavelength of the sensor -
645 Nanometre
Turck Banner

Availability On Request

£37.20
