42167 {B}

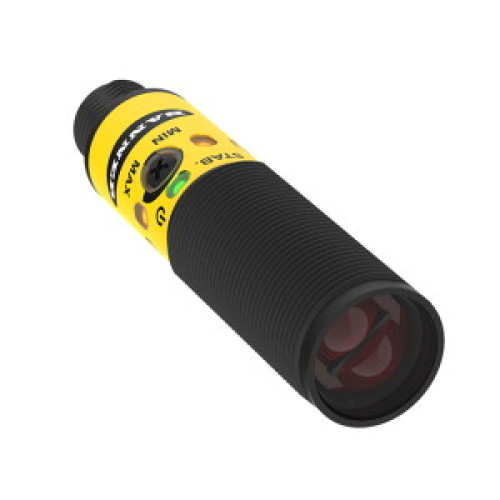

S18-2 Series: Diffuse Reflective, Range: 750, Input: 10-30 V dc, Outputs: Complementary PNP, 4-pin M12 Integral QD

Manufacturer's No: S18-2VPDL-Q8     Manufacturer: Turck Banner
S18-2 Series: Diffuse Reflective, Range: 750, Input: 10-30 V dc, Outputs: Complementary PNP, 4-pin M12 Integral QD

Availability Available to order

£54.67
  • Photoelectric Sensor
  • Diffuse Mode Sensor
  • Operating Voltage: 10-30 VDC
  • Max. Range: 750 mm
  • Male Connector: M12 x 1, 4-pin
  • Protection Class: IP67
  • Ambient Temperature: -40°C to +70°C
  • Sensitivity Adjusted via Potentiometer
  • Visible Red LED Light
  • PNP Switching Output, Changeover


Product

Manufacturer Material ID -
S18-2VPDL-Q8
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67

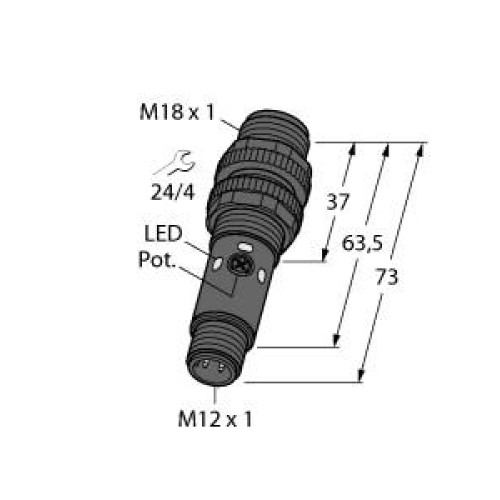

Diameter sensor -
18 Millimetre
Housing material -
Plastic
Length of sensor -
73 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Max. switching distance -
750 Millimetre
Reaction time -
1.5 Millisecond
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Wavelength of the sensor -
624 Nanometre
Turck Banner

Availability Available to order

£54.67
