3086563

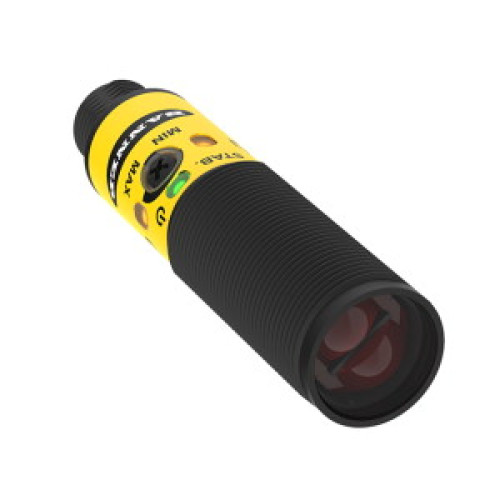

S18-2 Series: Polarized Retroreflective with pot, Range: variable to 6 m, Input: 10-30 V dc, Outputs: Complementary PNP, 4-pin M12

Manufacturer's No: S18-2VPLPC-Q8     Manufacturer: Turck Banner
S18-2 Series: Polarized Retroreflective with pot, Range: variable to 6 m, Input: 10-30 V dc, Outputs: Complementary PNP, 4-pin M12 Integral QD

Availability On Request

£74.40
  • Photoelectric sensor with retroreflective sensor and polarizing filter
  • Operating voltage: 10-30 VDC
  • Maximum range: 6000 mm
  • Male connector: M12 x 1, 4-pin
  • Protection class: IP67
  • Ambient temperature: -40°C to +70°C
  • Sensitivity adjustment via potentiometer
  • Visible red LED light
  • PNP switching output, changeover


Product

Manufacturer Material ID -
S18-2VPLPC-Q8
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Housing material -
Plastic
Length of sensor -
73 Millimetre
Max. switching distance -
6000 Millimetre
Rated switching distance -
6000 Millimetre
Reaction time -
1.5 Millisecond
Type of electric connection -
Connector M12
Type of light -
Polarized red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Wavelength of the sensor -
624 Nanometre
Turck Banner

Availability On Request

£74.40
