3091118

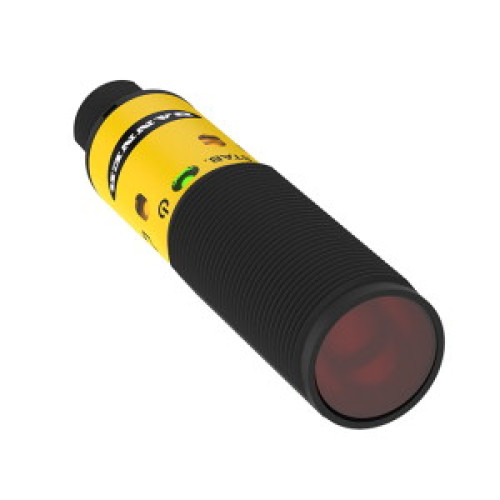

S18-2 Series: Fixed Field, Range: 200, Input: 10-30 V dc, Outputs: Complementary PNP, 4-pin M12 Integral QD

Manufacturer's No: S18-2VPFF200-Q8     Manufacturer: Turck Banner
S18-2 Series: Fixed Field, Range: 200, Input: 10-30 V dc, Outputs: Complementary PNP, 4-pin M12 Integral QD

Availability On Request

£93.46
  • Photoelectric sensor in diffuse mode
  • Features fixed-field background suppression
  • Operating voltage: 10-30 VDC
  • Maximum range: 200 mm
  • M12 x 1 male connector, 4-pin
  • Protection class: IP67
  • Ambient temperature range: -40 to +70°C
  • Equipped with a visible red LED light
  • PNP switching output with changeover functionality


Product

Manufacturer Material ID -
S18-2VPFF200-Q8
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Adjustment range -
1 Millimetre
Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67

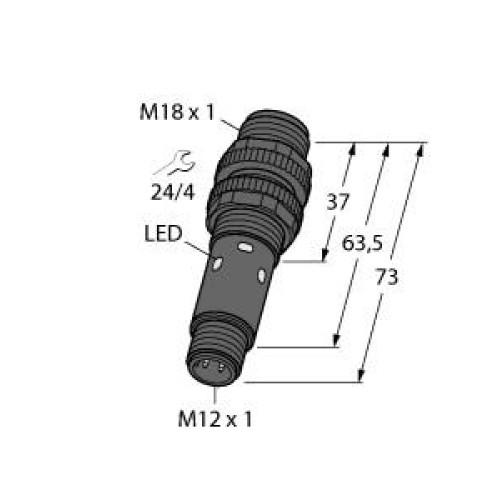

Diameter sensor -
18 Millimetre
Housing material -
Plastic
Length of sensor -
73 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Max. switching distance -
200 Millimetre
Rated switching distance -
200 Millimetre
Reaction time -
1.5 Millisecond
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Wavelength of the sensor -
624 Nanometre
Turck Banner

Availability On Request

£93.46
