3029823

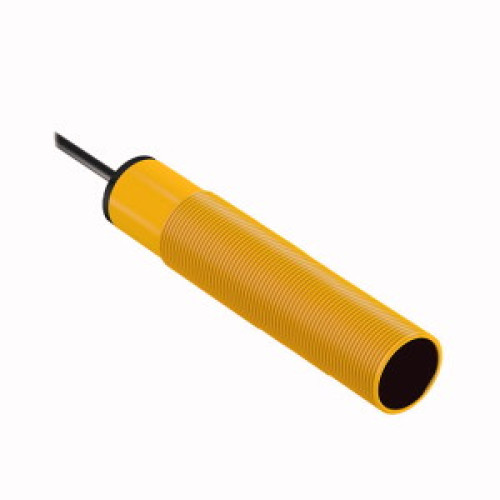

EZ-BEAM S18 Series: Emitter, Range: 20 m, Input: 20-250 V ac, Output: Not Applicable, 2 m (6.5 ft) Cable

Manufacturer's No: S183E     Manufacturer: Turck Banner
EZ-BEAM S18 Series: Emitter, Range: 20 m, Input: 20-250 V ac, Output: Not Applicable, 2 m (6.5 ft) Cable

Availability On Request

£53.53
  • Photoelectric sensor in Opposed Mode (Emitter)
  • Operating voltage: 20-250 VAC
  • Max. range: 20000 mm
  • Cable length: 2 m
  • Protection class: IP67
  • Ambient temperature: -40 to +70 °C


Product

Manufacturer Material ID -
S183E
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Housing material -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
20000 Millimetre
Rated switching distance -
20000 Millimetre
Setting procedure -
Other
Type of electric connection -
Cable
Type of light -
Infrared light
Wavelength of the sensor -
950 Nanometre
Turck Banner

Availability On Request

£53.53
