3031407

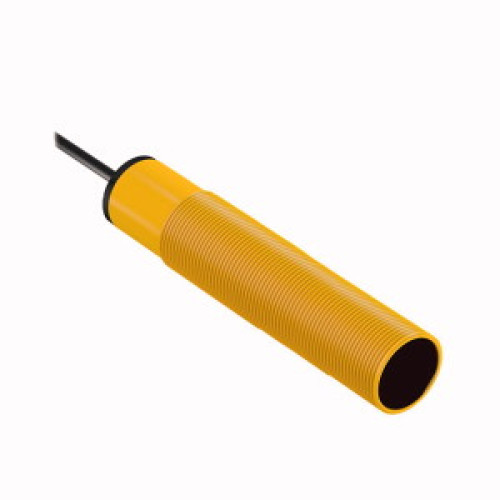

S186ELD Laser: Emitter, Range: depends on receiver, Input: 10-30 V dc, Output: Not Applicable, 2 m (6.5 ft) Cable

Manufacturer's No: S186ELD     Manufacturer: Turck Banner
S186ELD Laser: Emitter, Range: depends on receiver, Input: 10-30 V dc, Output: Not Applicable, 2 m (6.5 ft) Cable

Availability On Request

£266.76
  • Photoelectric sensor with laser emitter
  • Operating voltage: 10-30 VDC
  • Max. range: 15000 mm
  • Cable length: 2 m, PVC material
  • Protection classes: IP67/IP69K
  • Ambient temperature: -10 to +50 °C


Product

Manufacturer Material ID -
S186ELD
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-10 Degrees celsius
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Housing material -
Plastic
Laser protection class -
Class 1
Length of sensor -
69.5 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
15000 Millimetre
Rated switching distance -
15000 Millimetre
Type of electric connection -
Cable
Type of light -
Polarity free red light
Wavelength of the sensor -
650 Nanometre
