3036393

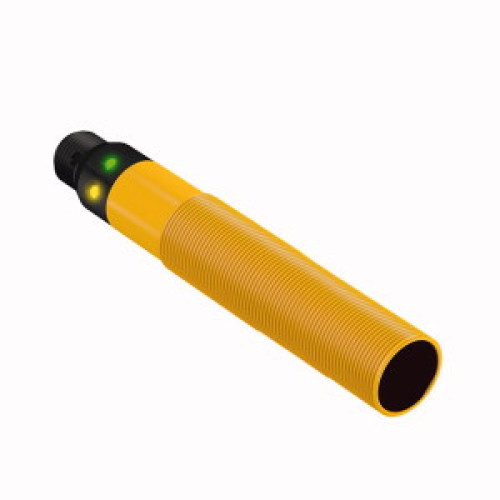

S186ELD Laser: Emitter, Range: depends on receiver, Input: 10-30 V dc, Output: Not Applicable, M12 Integral QD

Manufacturer's No: S186ELDQ     Manufacturer: Turck Banner
S186ELD Laser: Emitter, Range: depends on receiver, Input: 10-30 V dc, Output: Not Applicable, M12 Integral QD

Availability On Request

POA
  • Photoelectric sensor with laser emitter
  • Operating voltage: 10-30 VDC
  • Maximum range: 15000 mm
  • M12 x 1 male, 4-pin connector
  • Protection classes: IP67/IP69K
  • Ambient temperature: -10 to +50°C


Product

Manufacturer Material ID -
S186ELDQ
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39121521

Technical Specification

Ambient temperature -
-10 Degrees celsius
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Housing material -
Plastic
Laser protection class -
Class 1
Length of sensor -
88 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
15000 Millimetre
Rated switching distance -
15000 Millimetre
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Wavelength of the sensor -
650 Nanometre
Turck Banner

Availability On Request

POA
