3030328

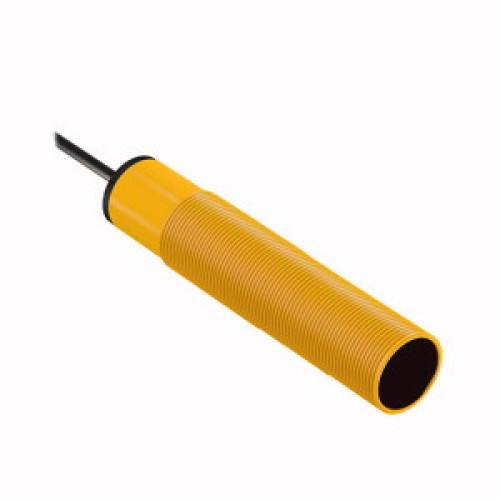

EZ-BEAM S18 Series: Fixed Field, Range: 100, Input: 20-250 V ac, Output: SPST Solid-state Light Operate, 2 m (6.5 ft) Cable

Manufacturer's No: S18AW3FF100     Manufacturer: Turck Banner
EZ-BEAM S18 Series: Fixed Field, Range: 100, Input: 20-250 V ac, Output: SPST Solid-state Light Operate, 2 m (6.5 ft) Cable

Availability On Request

£165.14
  • Photoelectric sensor in diffuse mode
  • Features fixed-field background suppression
  • Operating voltage: 20-250 VAC
  • Maximum range: 100 mm
  • Cable length: 2 meters
  • Protection class: IP67
  • Ambient temperature range: -40 to +70°C


Product

Manufacturer Material ID -
S18AW3FF100
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Adjustment range -
0 Millimetre
Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Housing material -
Plastic

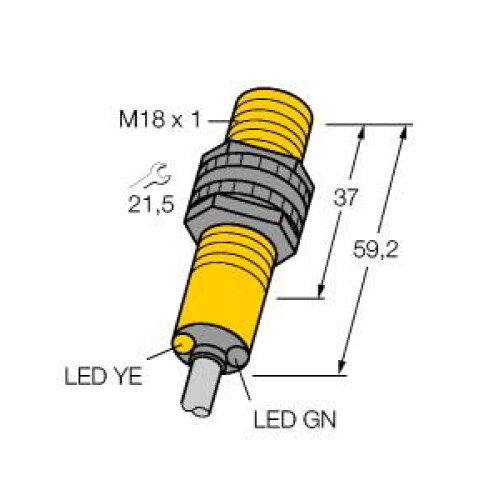

Length of sensor -
59.2 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
100 Millimetre
Rated switching distance -
100 Millimetre
Reaction time -
16 Millisecond
Setting procedure -
Other
Switching frequency -
40 Hertz
Type of electric connection -
Cable
Type of light -
Infrared light
Type of switch function -
Normally open contact (NO)
Type of switching output -
Relay contact
Wavelength of the sensor -
880 Nanometre
Turck Banner

Availability On Request

£165.14
