3058063

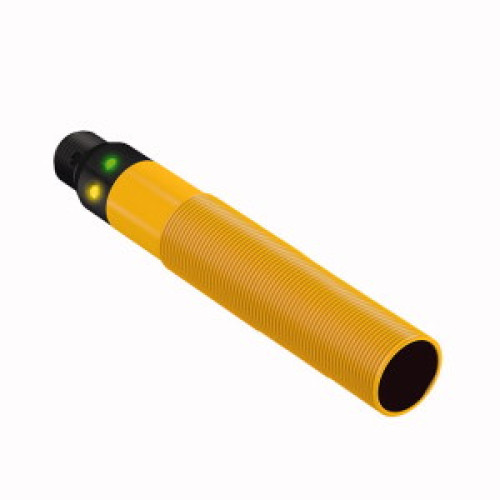

EZ-BEAM S18 Series: Fixed Field, Range: 25, Input: 20-250 V ac, Output: SPST Solid-State Light Operate, 4-pin Micro Integral QD

Manufacturer's No: S18AW3FF25Q1     Manufacturer: Turck Banner
EZ-BEAM S18 Series: Fixed Field, Range: 25, Input: 20-250 V ac, Output: SPST Solid-State Light Operate, 4-pin Micro Integral QD

Availability On Request

£165.14
  • Photoelectric sensor in diffuse mode
  • Features fixed-field background suppression
  • Operating voltage: 20-250 VAC
  • Maximum range: 25 mm
  • Connector: M12 × 1 male, 4-pin
  • Protection classes: IP67/IP69K
  • Ambient temperature range: -40 °C to +70 °C


Product

Manufacturer Material ID -
S18AW3FF25Q1
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Adjustment range -
0 Millimetre
Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67

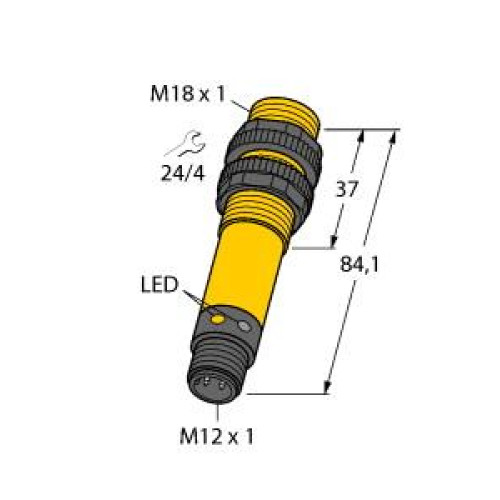

Diameter sensor -
18 Millimetre
Housing material -
Plastic
Length of sensor -
84.1 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
25 Millimetre
Rated switching distance -
25 Millimetre
Reaction time -
16 Millisecond
Sensing mode -
Light switching
Switching frequency -
40 Hertz
Type of electric connection -
Connector 1/2 inch
Type of light -
Infrared light
Type of switch function -
Other
Type of switching output -
Relay contact
Wavelength of the sensor -
880 Nanometre
Turck Banner
