3033452

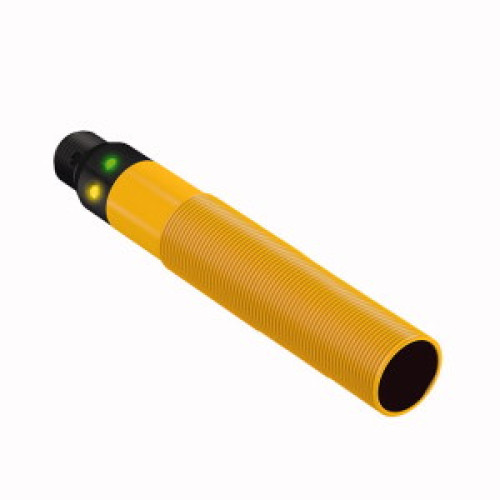

EZ-BEAM S18 Series: Polarized Retro, Range: 2 m, Input: 20-250 V ac, Output: SPST Solid-state Dark Operate, 4-pin Micro Integral Q

Manufacturer's No: S18RW3LPQ1     Manufacturer: Turck Banner
EZ-BEAM S18 Series: Polarized Retro, Range: 2 m, Input: 20-250 V ac, Output: SPST Solid-state Dark Operate, 4-pin Micro Integral QD

Availability On Request

£147.90
  • Photoelectric sensor with retroreflective design and polarizing filter
  • Operating voltage: 20 to 250 VAC
  • Maximum range: 2000 mm
  • Connector: M12 × 1 male, 4-pin
  • Protection classes: IP67/IP69K
  • Ambient temperature range: -40 °C to +70 °C
  • Features selectable light/dark operation and light operation with alarm function


Product

Manufacturer Material ID -
S18RW3LPQ1
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Housing material -
Plastic
Length of sensor -
78.7 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
2000 Millimetre
Rated switching distance -
2000 Millimetre
Reaction time -
16 Millisecond
Sensing mode -
Dark switching
Setting procedure -
Other
Switching frequency -
40 Hertz
Type of electric connection -
Connector 1/2 inch
Type of light -
Polarized red light
Type of switch function -
Other
Type of switching output -
Relay contact
Wavelength of the sensor -
680 Nanometre
Turck Banner

Availability On Request

£147.90
