3031174

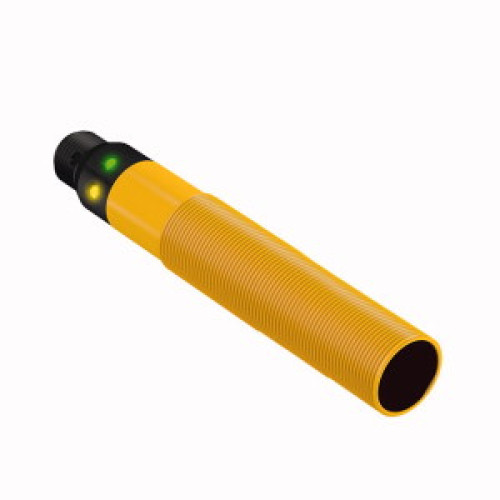

EZ-BEAM S18 Series: Diffuse, Range: 300, Input: 10-30 V dc, Output: Complementary NPN, 4-pin M12 Integral QD

Manufacturer's No: S18SN6DLQ     Manufacturer: Turck Banner
EZ-BEAM S18 Series: Diffuse, Range: 300, Input: 10-30 V dc, Output: Complementary NPN, 4-pin M12 Integral QD

Availability On Request

£73.50
  • Photoelectric Sensor
  • Diffuse Mode Sensor
  • Operating voltage: 10-30 VDC
  • Max. range: 300 mm
  • M12 × 1 male connector, 4-pin
  • Protection classes: IP67/IP69K
  • Ambient temperature: -40°C to +70°C
  • Selectable light/dark operation or light operation with alarm function
  • NPN switching output, changeover


Product

Manufacturer Material ID -
S18SN6DLQ
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67

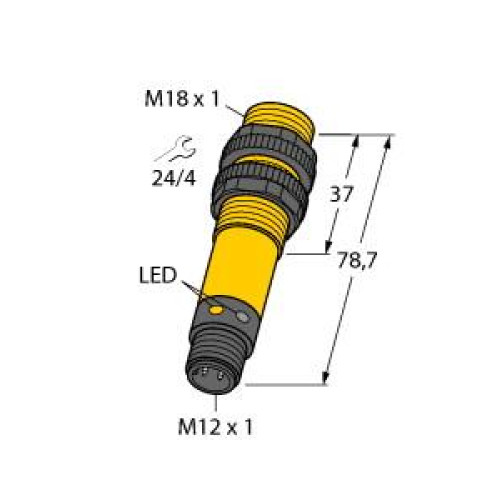

Diameter sensor -
18 Millimetre
Housing material -
Plastic
Length of sensor -
78.7 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
300 Millimetre
Reaction time -
3 Millisecond
Setting procedure -
Other
Switching frequency -
160 Hertz
Type of electric connection -
Connector M12
Type of light -
Infrared light
Type of switch function -
Programmable/configurable
Type of switching output -
NPN
Wavelength of the sensor -
880 Nanometre
