3029511

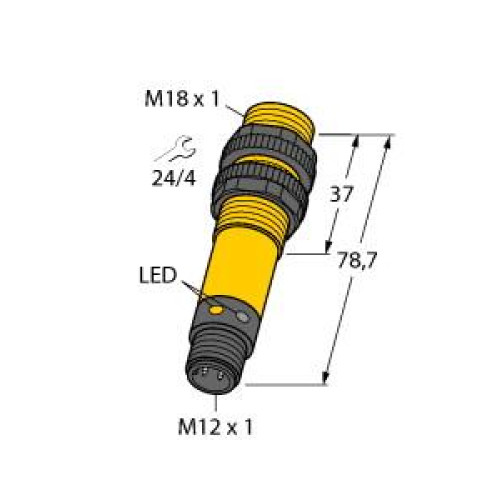

EZ-BEAM S18 Series: Retro, Range: 2 m, Input: 10-30 V dc, Output: Complementary NPN, 4-pin M12 Integral QD

Manufacturer's No: S18SN6LQ     Manufacturer: Turck Banner
EZ-BEAM S18 Series: Retro, Range: 2 m, Input: 10-30 V dc, Output: Complementary NPN, 4-pin M12 Integral QD

Availability On Request

£68.96
  • Photoelectric Sensor
  • Retroreflective Sensor
  • Operating Voltage: 10-30 VDC
  • Max. Range: 2000 mm
  • M12 × 1 Male Connector, 4-pin
  • Protection Classes: IP67/IP69K
  • Ambient Temperature: -40°C to +70°C
  • Selectable light/dark operation or light operation with alarm function
  • NPN switching output, changeover


Product

Manufacturer Material ID -
S18SN6LQ
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Housing material -
Plastic
Length of sensor -
78.7 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
2000 Millimetre
Rated switching distance -
2000 Millimetre
Reaction time -
3 Millisecond
Setting procedure -
Other
Switching frequency -
160 Hertz
Type of electric connection -
Connector M12
Type of light -
Infrared light
Type of switch function -
Programmable/configurable
Type of switching output -
NPN
Wavelength of the sensor -
950 Nanometre
