3029508

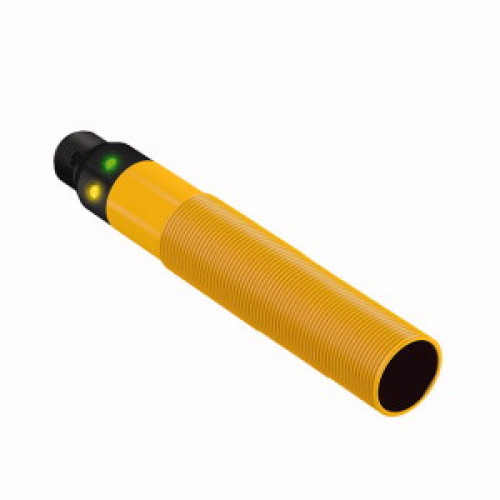

EZ-BEAM S18 Series: Diffuse, Range: 100, Input: 10-30 V dc, Output: Complementary PNP, 4-pin M12 Integral QD

Manufacturer's No: S18SP6DQ     Manufacturer: Turck Banner
EZ-BEAM S18 Series: Diffuse, Range: 100, Input: 10-30 V dc, Output: Complementary PNP, 4-pin M12 Integral QD

Availability On Request

POA
  • Photoelectric Sensor
  • Diffuse Mode Sensor
  • Operating Voltage: 10-30 VDC
  • Max. Range: 100 mm
  • M12 x 1 Male Connector, 4-pin
  • Protection Classes: IP67/IP69K
  • Ambient Temperature: -40°C to +70°C
  • Selectable light/dark operation or light operation with alarm function
  • PNP switching output, changeover


Product

Manufacturer Material ID -
S18SP6DQ
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Housing material -
Plastic
Length of sensor -
78.7 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
100 Millimetre
Reaction time -
3 Millisecond
Setting procedure -
Other
Switching frequency -
160 Hertz
Type of electric connection -
Connector M12
Type of light -
Infrared light
Type of switch function -
Programmable/configurable
Type of switching output -
PNP
Wavelength of the sensor -
880 Nanometre
Turck Banner

Availability On Request

POA
