3029411

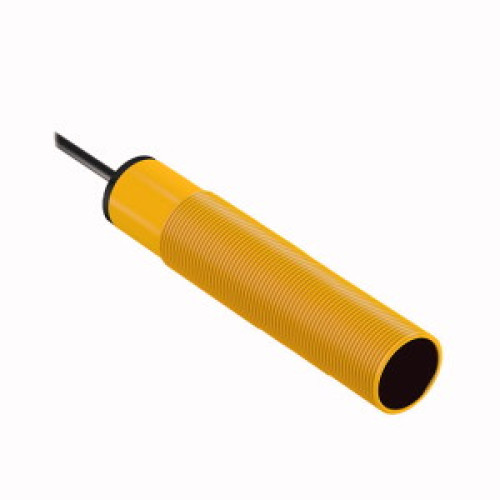

EZ-BEAM S18 Series: Retro, Range: 2 m, Input: 10-30 V dc, Output: Complementary PNP, 2 m (6.5 ft) Cable

Manufacturer's No: S18SP6L     Manufacturer: Turck Banner
EZ-BEAM S18 Series: Retro, Range: 2 m, Input: 10-30 V dc, Output: Complementary PNP, 2 m (6.5 ft) Cable

Availability On Request

£63.52
  • Photoelectric sensor
  • Retroreflective sensor
  • Operating voltage: 10-30 VDC
  • Max. range: 2000 mm
  • Cable length: 2 m
  • Protection class: IP67
  • Ambient temperature: -40 to +70 °C
  • Selectable light/dark operation
  • Light operation with alarm function
  • PNP switching output, changeover


Product

Manufacturer Material ID -
S18SP6L
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Housing material -
Plastic
Length of sensor -
59.2 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
2000 Millimetre
Rated switching distance -
2000 Millimetre
Reaction time -
3 Millisecond
Setting procedure -
Other
Switching frequency -
160 Hertz
Type of electric connection -
Cable
Type of light -
Infrared light
Type of switch function -
Programmable/configurable
Type of switching output -
PNP
Wavelength of the sensor -
950 Nanometre
Turck Banner

Availability On Request

£63.52
