3030797

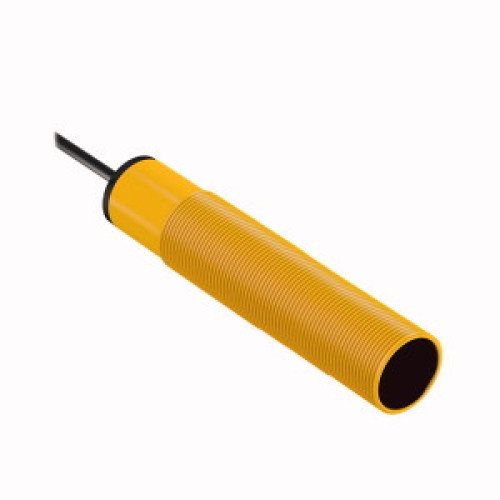

EZ-BEAM S18 Series: Receiver, Range: 20 m, Input: 10-30 V dc, Output: Complementary PNP, 9 m (30 ft) Cable

Manufacturer's No: S18SP6R W/30     Manufacturer: Turck Banner
EZ-BEAM S18 Series: Receiver, Range: 20 m, Input: 10-30 V dc, Output: Complementary PNP, 9 m (30 ft) Cable

Availability On Request

£78.03
  • Photoelectric Sensor, Opposed Mode Sensor (Receiver)
  • Max. range: 20000 mm
  • Operating voltage: 10-30 VDC
  • Cable length: 9 m
  • Ambient temperature: -40 to +70 °C
  • Protection class: IP67
  • Connection cable length: 2 m
  • PNP switching output, changeover


Product

Manufacturer Material ID -
S18SP6R W/30
Net Weight -
0.60kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Housing material -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
20000 Millimetre
Rated switching distance -
20000 Millimetre
Reaction time -
3 Millisecond
Setting procedure -
Other
Switching frequency -
160 Hertz
Type of electric connection -
Cable
Type of switch function -
Programmable/configurable
Type of switching output -
PNP
Turck Banner

Availability On Request

£78.03
