3002710

Ultrasonic Sensor, diffuse mode sensor, With Analog Output

Manufacturer's No: S18UIAR W/30     Manufacturer: Turck Banner
Ultrasonic Sensor, diffuse mode sensor, With Analog Output

Availability On Request

POA
  • Type: Ultrasonic Sensor
  • Mode: Diffuse
  • Output: Analog
  • Operating Voltage: 10-30 VDC
  • Max. Range: 300 mm
  • Cable Length: 9 m
  • Compact design
  • Temperature Compensation
  • Very small blind zone: 3 cm
  • Measuring Range Adjustable via Teach-in

Read more

  • Range: 30 cm


Product

Manufacturer Material ID -
S18UIAR W/30
Net Weight -
0.64kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Diameter sensor -
18 Millimetre
Housing material -
Plastic

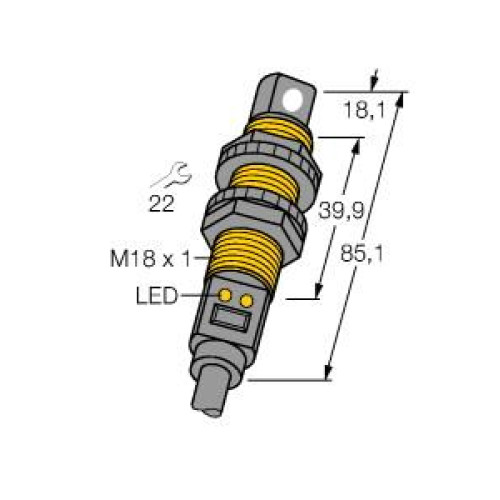

Length of sensor -
85.1 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
30 Millimetre
No load current -
100 Milliampere
Supply voltage -
10 Volt
Type of analogy output -
4 mA ... 20 mA
Type of electric connection -
Cable
Type of switching output -
Other
Turck Banner

Availability On Request

POA
