63000203

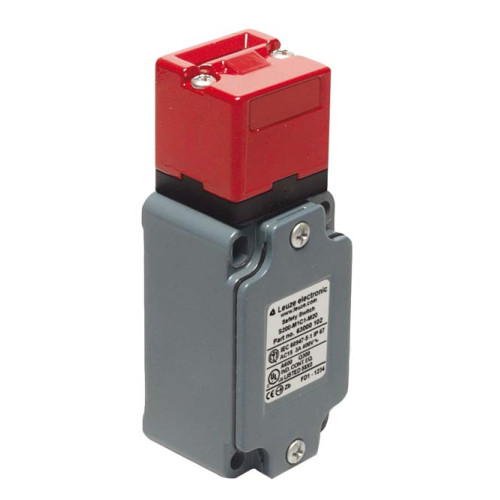

The Safety switch from . Contact allocation: 2NC + 1NO, Slow-action contact; Connection: Connector, M12, Metal, 8 -pin; Dimensions

Manufacturer's No: S200-M4C1-M12     Manufacturer: Leuze
The Safety switch from . Contact allocation: 2NC + 1NO, Slow-action contact; Connection: Connector, M12, Metal, 8 -pin; Dimensions: 40 mm x 38 mm x 109,5 mm; Housing material: Metal, ZAMAK; Switch t

Availability On Request

£100.00
  • Contact Allocation: 2NC + 1NO, Slow-action contact
  • Switch Type: Interlock device without guard interlocking, ISO 14119
  • Dimensions: 40 mm x 38 mm x 109.5 mm
  • Housing Material: Metal, ZAMAK
  • Connection: Connector, M12, Metal, 8-pin
  • Approach Actuation Directions: 4 x side (90°), 1 x top
  • Actuation Force (Pull-out): 10 N
  • Degree of Protection: IP 67
  • Certifications: IMQ, c UL US

Accessories

Others



Product

Manufacturer Material ID -
S200-M4C1-M12
Net Weight -
0.42kg

Additional Product Information

Commodity Code -
85369095
Country of Origin -
IT
UNSPSC -
39122200

Technical Specification

Rated operation current Ie at AC-15, 230 V -
- Ampere
Rated operation current Ie at DC-13, 230 V -
- Ampere
Type of interface -
UN
Rated operation current Ie at AC-15, 125 V -
- Ampere
Rated operation current Ie at AC-15, 24 V -
- Ampere
Rated operation current Ie at DC-13, 125 V -
- Ampere
Rated operation current Ie at DC-13, 24 V -
- Ampere
Number of contacts as normally closed contact -
-
Number of contacts as normally open contact -
-
Number of contacts as change-over contact -
-
Degree of protection (NEMA) -
UN
Material housing -
Metal
Degree of protection (IP) -
IP67
Thumbnail of product picture -
Ambient temperature during operating -
-25 Degrees celsius
Coating housing -
Other
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
38 Millimetre
Housing material -
Metal
Interface type -
None
Length of sensor -
109.5 Millimetre
Number of safety auxiliary contacts -
0
Suitable for safety functions -
Type of electric connection -
Connector M12
Type of interface for safety communication -
None
Type of switching contact -
Slow-action switch
Width sensor -
40 Millimetre
Leuze

Availability On Request

£100.00
