2CDS251103R0134

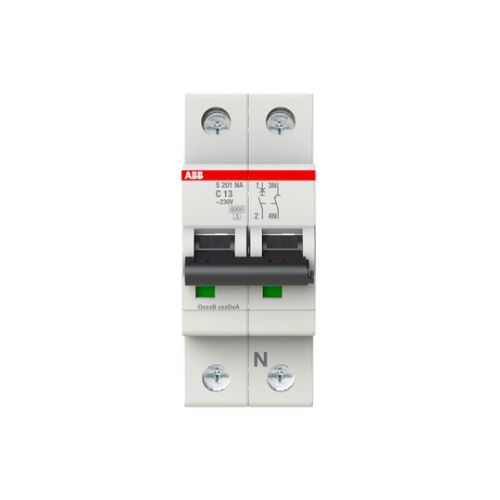

S201-C13NA Miniature Circuit Breaker - 1+NP - C - 13 A

Manufacturer's No: S201-C13NA     Manufacturer: ABB
S201-C13NA Miniature Circuit Breaker - 1+NP - C - 13 A

Availability Back Order

£43.98
  • Type: Miniature Circuit Breaker
  • Model: S201-C13NA
  • Configuration: 1+NP (1 Pole + Neutral Pole)
  • Rated Current: 13 A
  • Tripping Mechanisms: Delayed thermal for overload protection, Electromechanic for short circuit protection
  • Characteristics: B, C, D, K, Z
  • Configurations: 1P, 1P+N, 2P, 3P, 3P+N, 4P
  • Breaking Capacities: Up to 6 kA at 230/400 V AC
  • Rated Currents: Up to 63 A
  • Compliance: IEC/EN 60898-1, IEC/EN 60947-2, UL1077

Read more

  • Suitable for residential, commercial, and industrial applications
  • Bottom-fitting auxiliary contact available to save 50% space


Product

Manufacturer Material ID -
S201-C13NA
Net Weight -
0.25kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Built-in depth -
69 Millimetre
Release characteristic -
C
Degree of protection (IP) -
IP20
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Concurrently switching N-neutral -
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Number of poles (total) -
2
Number of protected poles -
1
Over voltage category -
3
Pollution degree -
3
Power loss -
4.6 Watt
Rated current -
13 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
440 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
6 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
6 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
10 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
10 kiloampere
Rated voltage -
230 Volt
Recess depth -
69 Millimetre
Tripping characteristic (type/curve) -
C
Voltage type -
Other
Width in number of modular spacings -
2
ABB

Availability Back Order

£43.98
