2CDS251281R0024

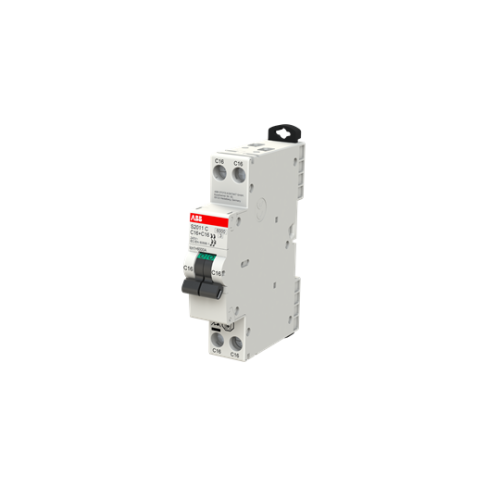

S2011C-C2 Miniature circuit breaker - 2P - C - 2 A

Manufacturer's No: S2011C-C2     Manufacturer: ABB
S2011C-C2 Miniature circuit breaker - 2P - C - 2 A

Availability On Request

£51.16
  • Model: S2011C-C2
  • Type: Miniature Circuit Breaker
  • Configuration: 2P (1P+1P)
  • Current Rating: 2A
  • Module Size: 1 module
  • Function: Protects circuits against overload and short circuit
  • Independent poles with separate toggles and tripping mechanism


Product

Manufacturer Material ID -
S2011C-C2
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
PL
UNSPSC -
39121601

Technical Specification

Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
1 Square millimetre
Connectable conductor cross section solid-core -
1 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Number of poles (total) -
2
Number of protected poles -
2
Over voltage category -
3
Pollution degree -
2
Power loss -
2.2 Watt
Rated current -
2 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
500 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
6 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
6 kiloampere
Rated voltage -
240 Volt
Recess depth -
70 Millimetre
Tripping characteristic (type/curve) -
C
Voltage type -
Other
Width in number of modular spacings -
1
ABB

Availability On Request

£51.16
