2CDS271065R0065

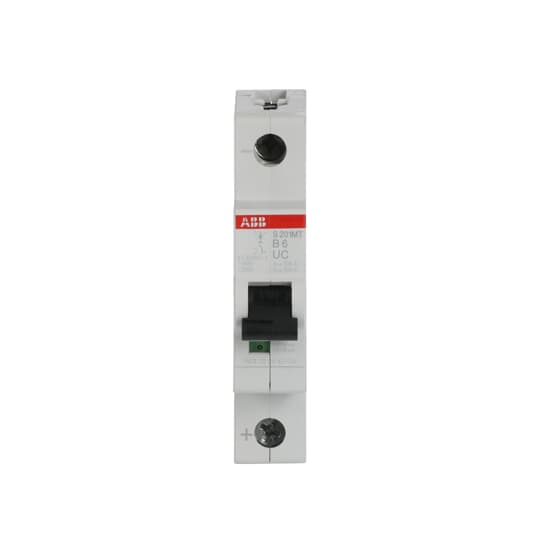

S201MT-B6UC Miniature Circuit Breaker - 1P - B - 6 A

Manufacturer's No: S201MT-B6UC     Manufacturer: ABB
S201MT-B6UC Miniature Circuit Breaker - 1P - B - 6 A

Availability On Request

£110.97
  • Product: S201MT-B6UC Miniature Circuit Breaker
  • Configuration: 1P
  • Current Rating: 6 A


Product

Manufacturer Material ID -
S201MT-B6UC
Net Weight -
0.13kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
UNSPSC -
39121601

Technical Specification

Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
- kiloampere
Built-in depth -
69 Millimetre
Release characteristic -
B
Degree of protection (IP) -
IP20
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Number of poles (total) -
1
Number of protected poles -
1
Over voltage category -
3
Pollution degree -
3
Power loss -
2.03 Watt
Rated current -
6 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
440 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
10 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
10 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
10 kiloampere
Rated voltage -
220 Volt
Recess depth -
69 Millimetre
Tripping characteristic (type/curve) -
B
Voltage type -
Other
Width in number of modular spacings -
1
ABB

Availability On Request

£110.97
