2CDS252001R0505

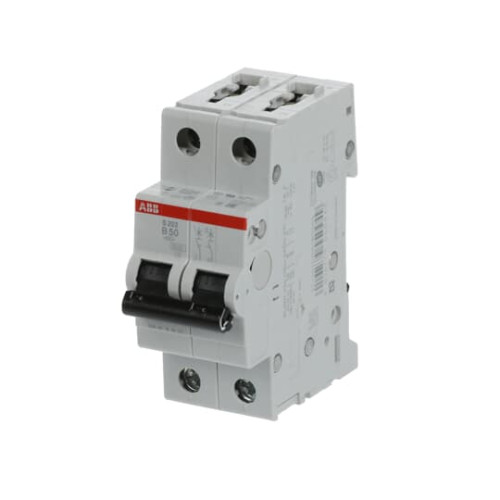

S202-B50 Miniature Circuit Breaker - 2P - B - 50 A

Manufacturer's No: S202B50     Manufacturer: ABB
S202-B50 Miniature Circuit Breaker - 2P - B - 50 A

Availability On Request

£55.35
  • Miniature Circuit Breaker S202-B50
  • 2P (2 poles)
  • 50A
  • Current limiting design
  • Delayed thermal tripping mechanism for overload protection
  • Electromechanic tripping mechanism for short circuit protection
  • Available in characteristics: B, C, D, K, Z
  • Configurations: 1P, 1P+N, 2P, 3P, 3P+N, 4P
  • Breaking capacities up to 6 kA at 230/400V AC
  • Rated currents up to 63A

Read more

  • Complies with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 standards
  • Suitable for residential, commercial, and industrial applications
  • Bottom-fitting auxiliary contact available for space-saving (50% space saved)


Product

Manufacturer Material ID -
S202B50
Net Weight -
0.25kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Built-in depth -
69 Millimetre
Release characteristic -
B
Degree of protection (IP) -
IP20
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
6 kiloampere
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Number of poles (total) -
2
Number of protected poles -
2
Over voltage category -
3
Pollution degree -
3
Power loss -
6.5 Watt
Rated current -
50 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
440 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
6 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
20 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
10 kiloampere
Rated voltage -
400 Volt
Recess depth -
69 Millimetre
Tripping characteristic (type/curve) -
B
Voltage type -
Other
Width in number of modular spacings -
2
ABB

Availability On Request

£55.35
