2CDS272061R0065

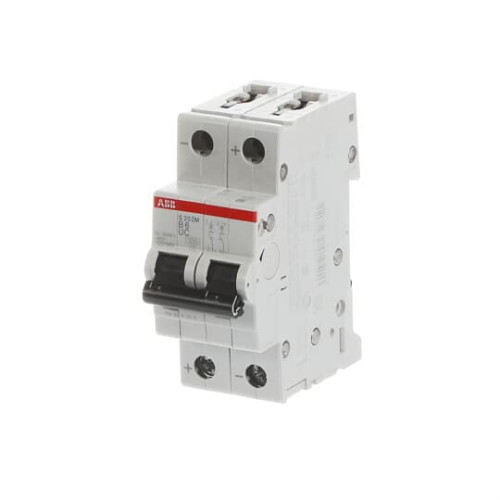

S202M-B6UC Miniature Circuit Breaker - 2P - B - 6 A

Manufacturer's No: S202M-B6UC     Manufacturer: ABB
S202M-B6UC Miniature Circuit Breaker - 2P - B - 6 A

Availability On Request

£194.19
  • Miniature Circuit Breaker S202M-B6UC
    • 2P (2 poles)
    • 6A
    • Suitable for DC and AC applications
    • High inbuilt short circuit breaking capacity
    • Compliant with major international and local standards
    • Compatible with System pro M compact® accessories
    • Simple and flexible solution for various applications


Product

Manufacturer Material ID -
S202M-B6UC
Net Weight -
0.25kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Built-in depth -
69 Millimetre
Release characteristic -
B
Degree of protection (IP) -
IP20
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Number of poles (total) -
2
Number of protected poles -
2
Over voltage category -
3
Pollution degree -
3
Power loss -
4.06 Watt
Rated current -
6 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
440 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
10 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
10 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
15 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
15 kiloampere
Rated voltage -
400 Volt
Recess depth -
69 Millimetre
Tripping characteristic (type/curve) -
B
Voltage type -
Other
Width in number of modular spacings -
2
ABB

Availability On Request

£194.19
