2CDS254001R0805

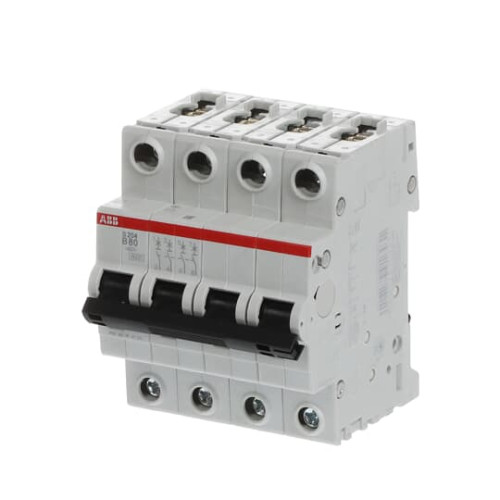

S204-B80 Miniature Circuit Breaker - 4P - B - 80 A

Manufacturer's No: S204B80     Manufacturer: ABB
S204-B80 Miniature Circuit Breaker - 4P - B - 80 A

Availability On Request

£249.36
  • Type: Miniature Circuit Breaker
  • Configuration: 4P
  • Current Rating: 80A
  • Breaking Capacity: 6kA
  • Trip Characteristic: B-Char.


Product

Manufacturer Material ID -
S204B80
Net Weight -
0.53kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Built-in depth -
69 Millimetre
Release characteristic -
B
Degree of protection (IP) -
IP20
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
4 Square millimetre
Connectable conductor cross section solid-core -
2.5 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Number of poles (total) -
4
Number of protected poles -
4
Over voltage category -
3
Pollution degree -
3
Power loss -
32.4 Watt
Rated current -
80 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
440 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
6 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
6 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
20 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
6 kiloampere
Rated voltage -
400 Volt
Recess depth -
69 Millimetre
Tripping characteristic (type/curve) -
B
Voltage type -
Other
Width in number of modular spacings -
4
ABB

Availability On Request

£249.36
