2CDS274001R0105

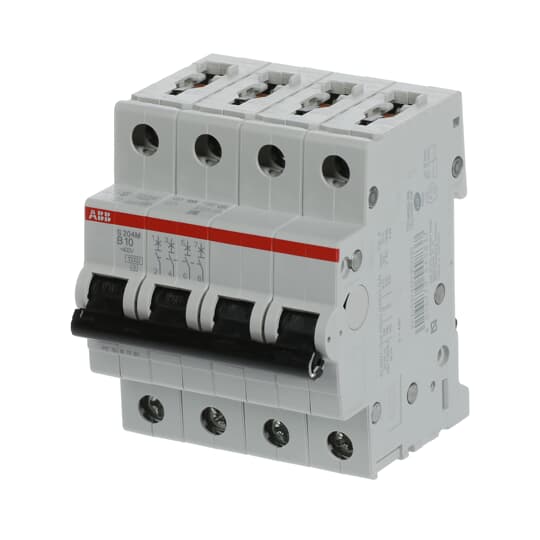

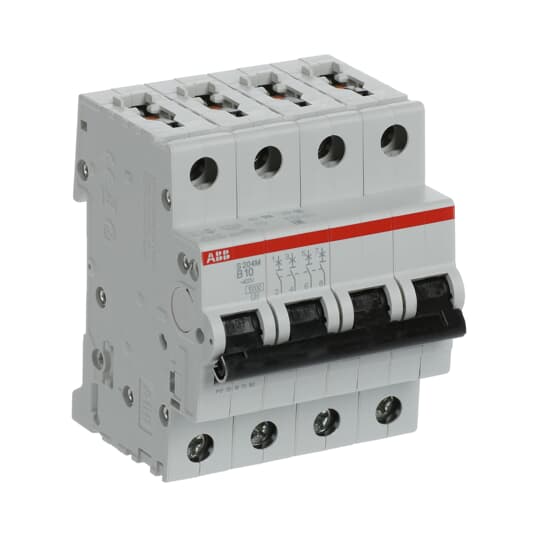

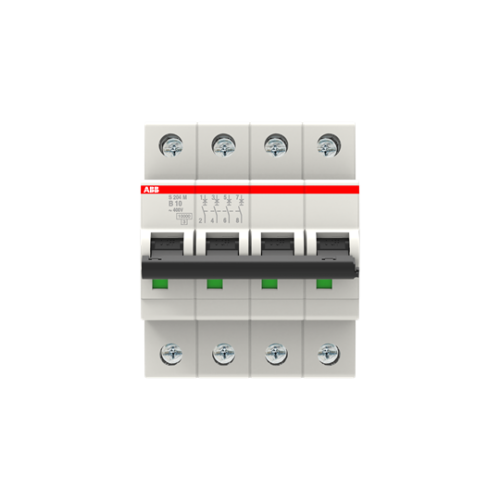

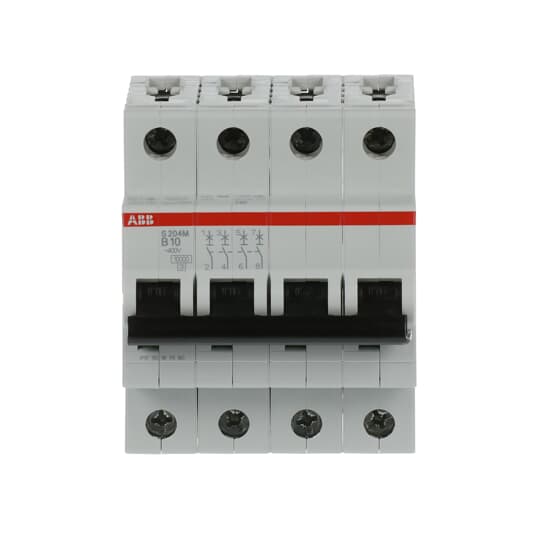

S204M-B10 Miniature Circuit Breaker - 4P - B - 10 A

Manufacturer's No: S204MB10     Manufacturer: ABB
S204M-B10 Miniature Circuit Breaker - 4P - B - 10 A

Availability On Request

£156.57
  • Type: Miniature Circuit Breaker
  • Model: S204M-B10
  • Configuration: 4P
  • Rated Current: 10 A
  • Tripping Mechanisms: Delayed thermal for overload protection, Electromechanic for short circuit protection
  • Characteristics: B, C, D, K, Z
  • Breaking Capacities: Up to 10 kA at 230/400 V AC
  • Rated Currents: Up to 63A
  • Compliance: IEC/EN 60898-1 and IEC/EN 60947-2
  • Suitable for residential, commercial, and industrial applications

Read more

  • Bottom-fitting auxiliary contact available for space-saving (50% space saved)


Product

Manufacturer Material ID -
S204MB10
Net Weight -
0.50kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Built-in depth -
71 Millimetre
Release characteristic -
B
Degree of protection (IP) -
IP20
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Number of poles (total) -
4
Number of protected poles -
4
Over voltage category -
3
Pollution degree -
3
Power loss -
8.4 Watt
Rated current -
10 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
440 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
10 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
10 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
25 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
15 kiloampere
Rated voltage -
400 Volt
Recess depth -
69 Millimetre
Tripping characteristic (type/curve) -
B
Voltage type -
Other
Width in number of modular spacings -
4
