2CSS200911R0006

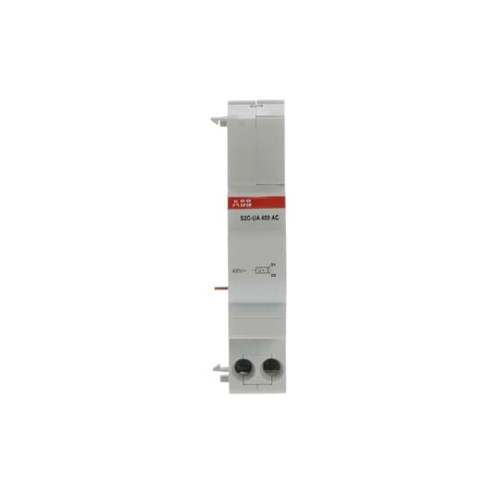

S2C-UA 400 AC Undervoltage Release

Manufacturer's No: S2C-UA400AC     Manufacturer: ABB
S2C-UA 400 AC Undervoltage Release

Availability On Request

POA
  • S2C-UA 400 AC Undervoltage Release
  • Protects load from voltage drop between 70% and 35% of rated value
  • Positive safety feature for device tripping when voltage is disconnected
  • Emergency stop button included
  • Compatible with MCBs S200 series, RCCBs F200 series, and RCBOs DS201, DS202C, DS200 series
  • Can be used with MCBs SN201 series with SN201-IH interface module
  • Rated voltage: 400V AC


Product

Manufacturer Material ID -
S2C-UA400AC
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Rated switch current -
- Ampere
Voltage type for actuating -
UN
Suitable for max. number of poles main contact unit (total) -
-
Assembly width (TE) -
18
Suitable for max. current main contact unit -
45 Ampere
Additional equipment -
Under voltage coil
Device fitting -
Miniature circuit breaker (MCB)
Function -
Under voltage coil
Number of fault-signal switches -
1
Rated voltage -
400 Volt
ABB

Availability On Request

POA
