3033379

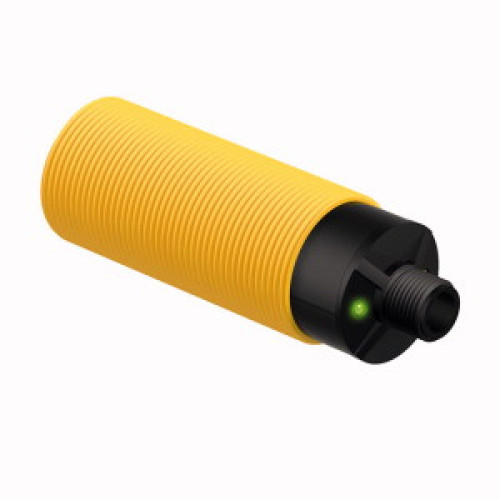

EZ-BEAM S30 Series: Emitter, Range: 60 m, Input: 20-250 V ac, Output: Not Applicable, 4-pin Micro Integral QD

Manufacturer's No: S303EQ1     Manufacturer: Turck Banner
EZ-BEAM S30 Series: Emitter, Range: 60 m, Input: 20-250 V ac, Output: Not Applicable, 4-pin Micro Integral QD

Availability On Request

£104.35
  • Type: Photoelectric Sensor, Opposed Mode (Emitter)
  • Operating Voltage: 20-250 VAC
  • Maximum Range: 60000 mm
  • Connector: Male ½”, 4-pin
  • Protection Classes: IP67/IP69K
  • Ambient Temperature: -40 to +70°C


Product

Manufacturer Material ID -
S303EQ1
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Diameter sensor -
30 Millimetre
Housing material -
Plastic
Length of sensor -
89.4 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
60000 Millimetre
Rated switching distance -
60000 Millimetre
Setting procedure -
Other
Type of electric connection -
Connector 1/2 inch
Type of light -
Infrared light
Wavelength of the sensor -
950 Nanometre
Turck Banner

Availability On Request

£104.35
